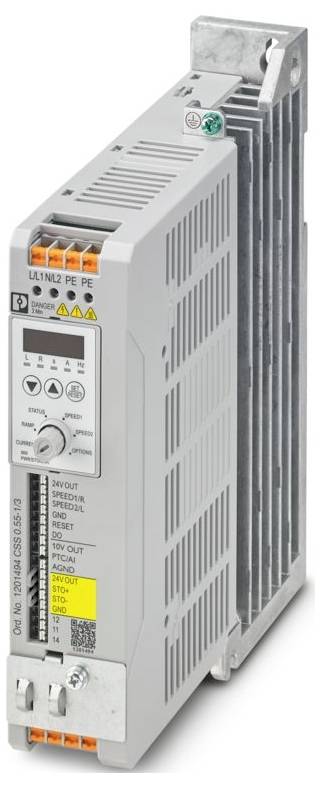

Phoenix Contact CSS 0.55-1/3 Variable speed starter
EAN:
Part number:
Item no:
Output voltage (max.)
230 V AC
Product type
Variable speed starter
Type
CSS 0.55-1/3
Dim
(W x H x D) 45 x 210 x 190 mm
Width
45 mm
Datasheet (PDF)
Technical specifications
- Number of phases: 1
- Number of steps: 2
- Base element without cover: No.
- Operating mode: Key/touch key
- Illumination: None
- Continuous power regulation: Yes
- With temperature sensor: No.
- Mounting type: Other
- Nominal current: 6.7 A
- RAL number: 7042
- Switch contact: Yes
- Type
CSS 0.55-1/3
- Output voltage (max.)
230 V AC
- Dim
(W x H x D) 45 x 210 x 190 mm
- Width
45 mm
IP20
- Manufacturer part #
1201494
- Factory colour
Grey
- Depth
190 mm
- Height
210 mm
- UKCA
yes
- Product type
Variable speed starter
Documents & Downloads
Datasheet
Datasheet 3566319 Phoenix Contact CSS 0.55-1/3 Variable speed starter
User & Safety Instructions
User & Safety Instructions 3566319 Phoenix Contact CSS 0.55-1/3 Variable speed starter
Description
Speed starter with soft start-up and adjustable speed for starting and reversing motors up to 230 V AC and 0.55 kW, adjustable motor protection, analogue input, STO-function up to SIL 3 / PL e, single-phase load input
