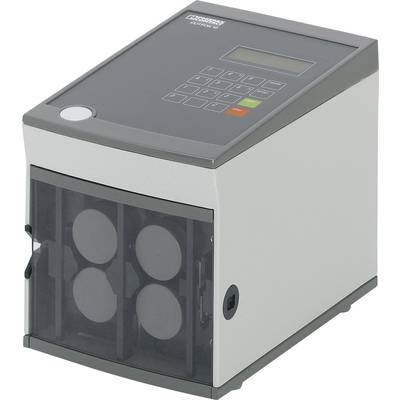

Phoenix Contact CUTFOX 10 1206829 Automatic stripper
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,915.13 / piece)
€ 3,915.13
plus VAT.
14-day return policy included
Technical specifications
- Cutting performance flexible: 0.08 mm² - 10 mm²; cutting performance rigid: 0.08 mm² - 2.5 mm²; for 230 V mains voltage; note: cutting performance; cross-section setting: automatically; cutting length: 2 - 99999 mm; feed rate: 0.5 m/s; interface host system: RS-232; Dialog Language: German / English / French / Italian
- Product type
Automatic stripper
- Manufacturer part #
1206829
- Length
295 mm
- Width
195 mm
- Weight
10 kg
- Suitable for
Heatshrink
Leads
Round cable
- Operating range (cross section) (max.)
10 mm²
- Working area cross section (min.)
0.08 mm²
- Operating range (diameter) (max.)
8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 468554 Phoenix Contact CUTFOX 10 1206829 Automatic stripper
User & Safety Instructions
User & Safety Instructions 468554 Phoenix Contact CUTFOX 10 1206829 Automatic stripper
Description
Automatic stripper, for cables, wires and heat-shrink sleeves, for 230 V Mains Voltage
Hints
This text is machine translated.
