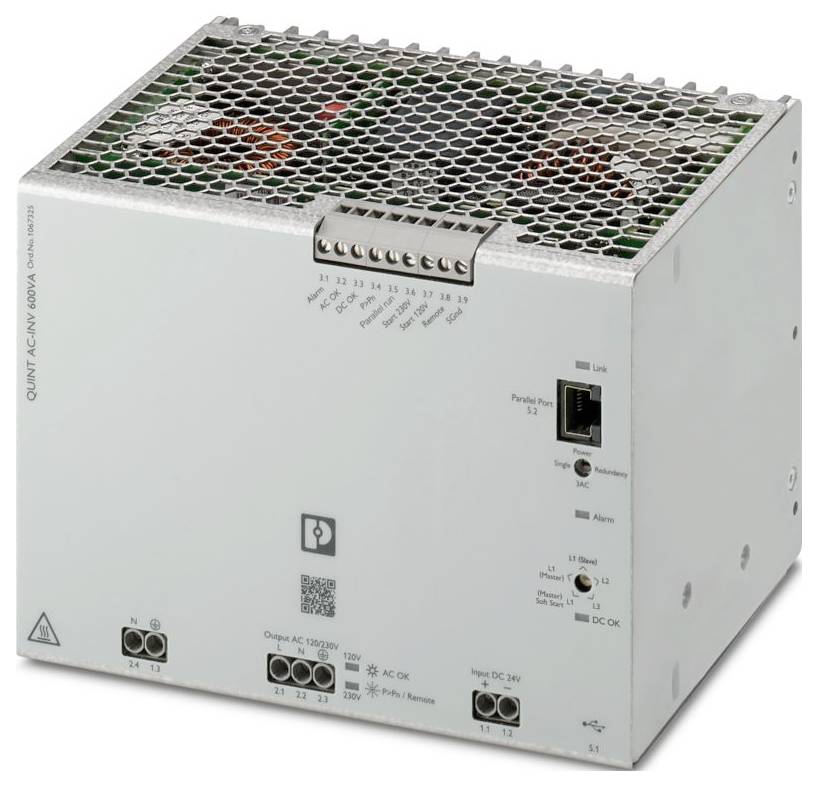

Phoenix Contact DC/AC inverter QUINT4-INV/24DC/1AC/600VA/USB 600 VA 24 V DC - 120 V AC, 230 V AC, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: QUINT INVERTER
- RJ45 connection type
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Width 180 mm
- Height: 130 mm
- Depth: 125 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C (> 50 °C: 2.5 % / K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-4-8
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Vibration (operation): 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6)
- Stripped length: 8 mm
- Frequency range: 0.15 MHz ... 80 MHz
- UL / C-UL listed UL 61010-2-201
- Protection class: I
- Output voltage 24 V
- Number of interfaces: 1
- Frequency:50 Hz;60 Hz
- Current consumption: Type 23 A; max. 28 A
- EFFICIENCY: > 86 % (120 V AC);> 87 % (230 V AC)
- RATED CURRENT (IN): 5 A (120 V AC);2.6 A (230 V AC)
- Series switch option: No.
- Power loss Idle maximum: Typical 21 W (120 V AC);TYPE. 21 W (230 V AC)
- Power loss Nominal load maximum: Typical 72 W (120 V AC);TYPE. 66 W (230 V AC)
- Parallel switching capability: Yes; max. 3
- Input: ± 1 kV (symmetrical);± 2 kV (asymmetrical)
- Position: 3.x
- Wire connection: Conductor connection
- rigid: 0.2 mm² ... 1.5 mm².
- flexible: 0.2 mm² ... 1.5 mm².
- Flexible with wire-end sleeve without plastic sleeve: 0.2 mm² ... 1.5 mm².
- Flexible with wire-end sleeve with plastic sleeve: 0.2 mm² ... 1.5 mm².
- Rigid (AWG): 30 ... 12
- Output: ± 2 kV (symmetrical);± 4 kV (asymmetrical)
- Signal 30 A/m
- Connection marking 3.9
- Function: Signal earthing
- Signal ground SGnd: Signal ground SGnd
- Reference potential: For the signal inputs and signal outputs
- Number of phases: 1
- MTBF (IEC 61709, SN 29500) 532525 H (40 °C)
- Article dimensions: Article dimensions
- Mounting dimensions
- Case material: metal
- Operating height: ≤ 3000 m (> 2000 m: 0.6 % / 100 m )
- Max. ass. Humidity (operating): ≤ 95%
- Shock: 20g per direction of the room (EN 60068-2-27)
- UL
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Low Voltage Directive: Conformity to NSR Directive 2014/35/EU
- Discharge of static electricity: Discharge of static electricity
- Contact discharge ± 6 kV
- Air discharge ± 8 kV
- Note: Criterion A (B for USB)
- Electromagnetic HF-field: Electromagnetic HF-field
- Test field strength 10 V/m
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Magnetic field with energy-technical frequency: Magnetic field with energy-technical frequency
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Power factor (cos phi) 0.8
- Derating: 50 °C ... 60 °C (2.5 %/K)
- Crest factor: 2.8
- Installation distance right / left 0 mm / 0 mm
- Installation distance above/below 50 mm / 50 mm
- Apparent power 600 VA
- Input voltage 24 V/DC
- Emitted interference: Interference emission acc. To EN 61000-6-4
- IEC 61000-6-2 immunity
- Continuous load current ≤ 20 mA
- Naming of signaling: Parallel run
- Interface: Parallel port
- Lock: Snap hook
- USB 2.0 transmission physics
- Signal output DC OK: Signal output DC OK
- Type of signaling: Red LED
- EN 61010-2-201: II
- Distortion factor (THD): < 3% (linear load);< 8% (nonlinear load)
- Drive form screw head: Longitudinal slot L
- INPUT VOLTAGE RANGE DC: 20 V DC ... 30 V DC
- Potential separation: Yes
- Cable length max. 3 m.
- Output voltage shape: Pure sine
- Nominal output frequency 60 Hz 50 Hz ±0.5 %
- Power 480 W
- Overload capability Network operation: 105 % (permanent);120 % ... 150 % (20 s / 5 s, then switch-off)
- Electronic current limit > 2.5 x IN (> 200 ms)
- Properties: Lockable
- Start signal input: Start signal input
- Low signal: Connection to SGnd with < 2.7 kΩ
- High signal: Open (> 35 kΩ between remote and Sgnd)
- REMOTE signal input: REMOTE signal input
- Signal output AC OK: Signal output AC OK
- Switching output: Transistor output, active
- LED status monitor: Red
- Alarm signal output: Signal output alarm
- Signal output P > PN: Signal output P > PN
- Signal output parallel run: Signal output parallel run
- Input voltage
20 - 30 V DC
- Product type
DC/AC inverter
- Signal output type
Sine wave
- Output voltage
120 V AC
230 V AC
24 V
600 VA
- Input voltage
24 V DC
- Output frequency
60 Hz, 50 Hz
- Input current (max.)
28 A
- Weight
2.525 kg
- Width
180 mm
- Height
130 mm
- Depth
125 mm
- Type
QUINT4-INV/24DC/1AC/600VA/USB
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562927 Phoenix Contact DC/AC inverter QUINT4-INV/24DC/1AC/600VA/USB 600 VA 24 V DC - 120 V AC, 230 V AC, 24 V
User & Safety Instructions
User & Safety Instructions 3562927 Phoenix Contact DC/AC inverter QUINT4-INV/24DC/1AC/600VA/USB 600 VA 24 V DC - 120 V AC, 230 V AC, 24 V
Description
QUINT INVERTER, mounting rail, input: 24 V DC, output: 1AC / 600 VA, pure sine.
