Name: Phoenix Contact ECM-UC-100A-UI-REL Current measuring transducer
Brand: Phoenix Contact
SKU: 3572840

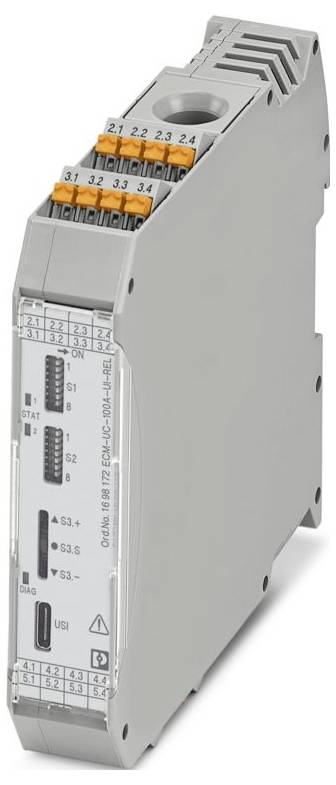

A gray control relay module with orange connectors, featuring multiple ports and labeled switches on its front panel.

Image similar

Type

ECM-UC-100A-UI-REL

Connection

Push-in connector

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Initial value Current measuring range 0 A.
Design of the analog output 4 - 20 mA
Final value measurement range: Current 100 A.
Configuration function integrated: No.
With switch output: No.

Type: ECM-UC-100A-UI-REL

Connection: Push-in connector

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3572840 Phoenix Contact ECM-UC-100A-UI-REL Current measuring transducer

User & Safety Instructions

User & Safety Instructions 3572840 Phoenix Contact ECM-UC-100A-UI-REL Current measuring transducer

Description

Current measuring transducer for the measurement of AC, DC and distorted currents. Configuration via USB-C port via web server (without 24 V DC). Current measuring ranges: 0 A ... 125 A Relay output, standard configuration, push-in connection

This text is machine translated.
