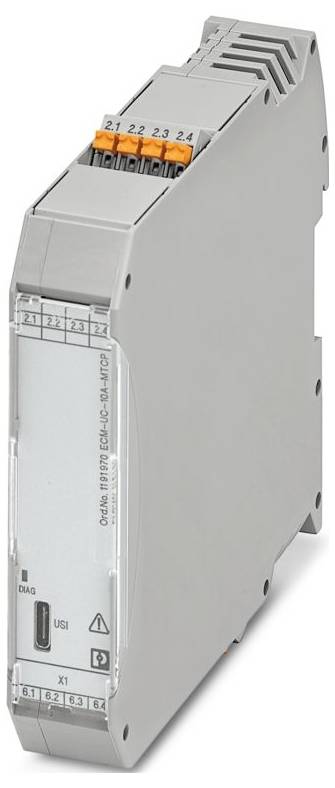

Image similar
Phoenix Contact ECM-UC-10A-MTCP Current measuring transducer
EAN:
Part number:
Item no:
Dim
(L x W) 113.8 mm x 22.6 mm
Type
ECM-UC-10A-MTCP
Connection
Push-in spring-loaded terminal
Connection
RJ45
Width
22.6 mm
Datasheet (PDF)
Technical specifications
- RJ45 connection type
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 13
- Width 22.6 mm
- Height: 106.7 mm
- Depth: 113.8 mm
- Colour: Grey (RAL 7042)
- Flammability class according to UL 94: V0 (housing)
- Material housing PA 6.6-FR
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 60 °C;-40 °F ... 140 °F
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m.
- Standards/regulations: IEC 61010-1
- Note: Register contents, see register table
- Insulation properties: Insulation properties
- Overvoltage category III (300 V)
- Pollution level: 2
- Permissible air humidity (operating): ≤ 95% (non-condensing)
- Stripped length: 10 mm
- Mounting position: Vertical or horizontal
- Identification: Ind. Cont. EQ E238705-E196811
- UL, USA / Canada: UL, USA / Canada
- Supply voltage range: 9.6 V DC ... 30 V DC
- CE CE
- Article dimensions: Article dimensions
- Electromagnetic compatibility: Conformity to EMC directive
- Low-voltage directive: Conformity to the NS directive
- Interference radiation: Interference radiation
- Immunity speed EN 61000-6-2
- Input current range: 0 A AC ... 10 A AC;-10 A DC ... 10 A DC
- Naming: Interface configuration Modbus/TCP
- Depth (device depth (rail mounting): 114.5 mm (locked on NS 35/7.5 rail according to EN 60715)
- Supply: Supply
- Isolation: Safe separation according to IEC/EN 61010-1
- Rated insulation voltage 300 VAC (against earth)
- Testing voltage 2 kV AC (50 Hz, 60 s)
- Rated supply voltage 24 VDC
- Overcurrent capacity 2 x IN
- Temperature coefficient maximum: < 0.03 %/K.
- Step response (10-90%): 200 ms (AC/DC);20 ms (DC)
- Transmission error maximum: 0.5 % (from the range nominal value under nominal conditions)
- POWER CONSUMPTION: ≤ 2.3 W (30 V DC)
- Frequency range: 0 Hz;10 Hz ... 100 Hz;10 Hz ... 200 Hz;10 Hz ... 500 Hz;10 Hz ... 1000 Hz
- MEASURING RANGE: 0 A AC/DC ... 0.1 A AC/DC;0 A AC/DC ... 1 A AC/DC;0 A AC/DC ... 5 A AC/DC;0 A AC/DC ... 10 A AC/DC
- Measuring: Measuring
- Galvanic isolation output/supply: Galvanic isolation output/supply
- Galvanic isolation input / output: Galvanic isolation input / output
- Rated supply voltage range: 12 V DC ... 24 V DC -20 % ... +25 %
- Galvanic isolation IEC 61010-2-030: Galvanic isolation IEC 61010-2-030
- Measurement category III (300 V)
- Galvanic isolation input/supply: Galvanic isolation input/supply
- Setting range input current minimum: 0 A AC/DC ... 100 mA AC/DC
- Setting range input current maximum: 0 A AC/DC ... 12.5 A AC/DC (DIN/EN 61010-1);0 A AC/DC ... 10 A AC/DC (UL 61010-1);-12.5 A DC ... 12.5 A DC (DIN/EN 61010-1);-10 A DC ... 10 A DC (UL 61010-1)
- Surge current carrying capacity 10 x IN
- Curve form: Equal, alternating or distorted currents
- WBM: WBM
- IP address: 192.168.1.2;255.255.255.0 (subnet)
- ModBUS TCP: Modbus TCP
- Dim
(L x W) 113.8 mm x 22.6 mm
- Type
ECM-UC-10A-MTCP
- Connection
Push-in spring-loaded terminal
- Connection
RJ45
- Width
22.6 mm
- Length
113.8 mm
- Supply voltage
24 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566003 Phoenix Contact ECM-UC-10A-MTCP Current measuring transducer
User & Safety Instructions
User & Safety Instructions 3566003 Phoenix Contact ECM-UC-10A-MTCP Current measuring transducer
Description
Current measuring transducer for the measurement of AC, DC and distorted currents. Configuration via USB-C port via web server (without 24 V DC). 4 Current measuring ranges: 0 A ... 0.1 A to 0 A ... 12.5 A Modbus/TCP (RJ45) interface configuration, standard configuration, push-in connection
