Buy Phoenix Contact EM-PNET-GATEWAY-IFS 2904472

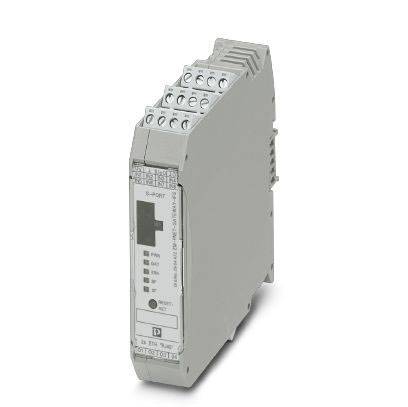

A grey electronic industrial component with multiple terminal blocks and LED indicators. Used for control applications.

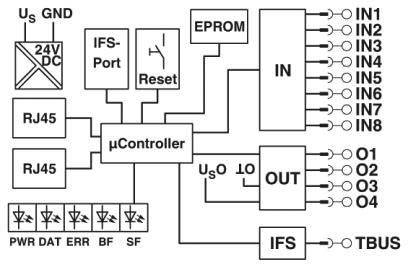

Diagram of a control board with labelled connections: '24V DC', 'RJ45', 'IFS Port', 'Reset', 'EPROM', 'IN', 'OUT', 'IFS'. Connects inputs and outputs with a microcontroller.

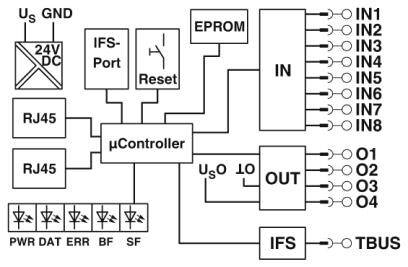

'Diagram of a Control Board: 24V DC Power Supply, RJ45 Connectors, IFS Port, Reset, Microcontroller, EPROM, Input/Output Ports.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protective circuit: Reverse polarity protection
Colour: grey
All mounting positions permitted
Mounting instructions: Can be aligned without distance
Wire stripping length: 8 mm
Screw thread: M3
Number of ports: 1
Conductor cross-section rigid: 0.2 mm² ... 2 mm²
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross-section AWG: 24 ... 12
Pollution level: 2
Over voltage category III

Type: EM-PNET-GATEWAY-IFS

Height: 99 mm

Length: 114.5 mm

Width: 22.5 mm

: IP20

Dim: (L x W x H) 114.5 x 22.5 x 99 mm

Connection: Rail bus connector

Manufacturer part #: 2904472

Fitting type (details): Carry rail mounting

Max. ambient temperature: +50 °C

Min. ambient temperature: -35 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225542 Phoenix Contact EM-PNET-GATEWAY-IFS 2904472

User & Safety Instructions

User & Safety Instructions 2225542 Phoenix Contact EM-PNET-GATEWAY-IFS 2904472

Description

Gateway for connecting up to 32 INTERFACE system nodes to a higher-level controller via PROFINET. THE INTERFACE system nodes are connected to the gateway by means of rail bus connectors; rail bus connectors are included.

This text is machine translated.
