Name: Phoenix Contact EMG 17-REL/SG-B 24/21/M Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-
Brand: Phoenix Contact
SKU: 2225814

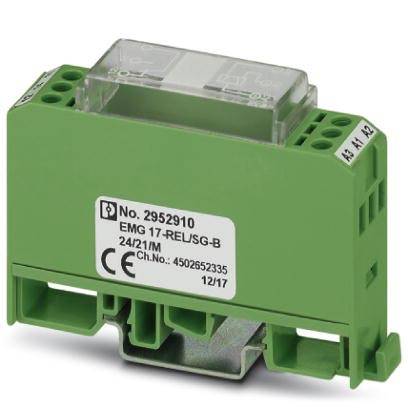

Green relay module with clear cover and side connection terminals, marked with 'No. 2952910' and CE marking.

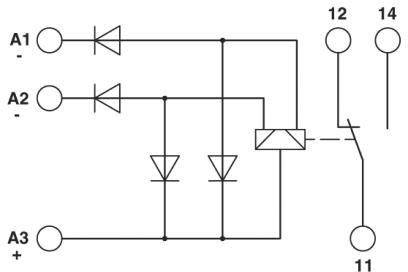

This is an electrical circuit diagram with two diodes, a relay, and several connection points that link different circuits.

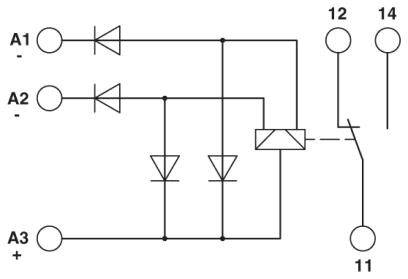

Circuit diagram with diodes, a switch, and connections. Diodes lead from A1 and A2 to a central point, connected with A3(+), as well as another path to the right side, connected to points 12 and 14.

1/3

Image similar

Packaging type

Piece

Product type

Relay component

Contact type

1 change-over

Nominal voltage

24 V DC

Switching voltage (max.)

250 V DC/AC

Datasheet (PDF)

Unavailable

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Power loss at rated condition: 0.19 W.
Maximum switching voltage 250 V AC/DC
Minimum switching voltage 5 V (at 100 mA)
Switching current minimum: 1 mA (at 24 V)
Maximum inrush current 8 A.
Switch-off power (resistive load) maximum:
144 W (AT 24 V DC)
43 W (AT 48 V DC)
42 W (AT 60 V DC)
55 W (AT 110 V DC)
100 W (AT 220 V DC)
1500 VA (AT 250 V AC)
Switching capacity:
All mounting positions permitted
Mounting instructions: Can be aligned without distance
Wire stripping length: 8 mm
Conductor cross-section rigid: 0.2 mm² ... 4 mm²
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross-section AWG: 24 ... 12
Rated insulation voltage 250 V AC
Dimensioning surge voltage: 4 kV
Insulation: Safe isolation, reinforced insulation
Over voltage category III

Packaging type: Piece

Product type: Relay component

Type: EMG 17-REL/SG-B 24/21/M

Connection: Screws

Response time: 5 ms

Fall time: 5 ms

Contact type: 1 change-over

Contact material: AgSnO

Nominal voltage: 24 V DC

Switching voltage (max.): 250 V DC/AC

Switching current (max.): 6 A

Max. switching capacity: 1500 VA

Durability: 10⁷ operations

Coil voltage rating: 0.19 W

Features: + diode

Max. temperature: +50 °C

Min. temperature: -40 °C

Length: 62.5 mm

Width: 17.5 mm

Height: 75 mm

Dim: (L x W x H) 62.5 x 17.5 x 75 mm

Content: 1 pc(s)

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Switching voltage (max.)

Switching current (max.)

Nominal voltage

Packaging type

Contact type

Phoenix Contact EMG 17-REL/SG-B 24/21/M Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over Piece 1 pc(s)

Item no:2225814

Unavailable

6 Piece(s)Conrad Electronic

This article

250 V DC/AC

6 A

24 V DC

Piece

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/21/MS Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over 1 pc(s)

Item no:2225768

Fast track dispatch on Wed 14 Oct

29 Piece(s)Conrad Electronic

250 V DC/AC

6 A

24 V DC

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Phoenix Contact PLC-RPT- 24UC/21/MS Relay component Nominal voltage: 24 V DC/AC Switching current (max.): 6 A 1 change-over Piece 1 pc(s)

Item no:2225769

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

250 V DC/AC

6 A

24 V DC/AC

Piece

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Phoenix Contact PLC-RPT-24DC/21/EX Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over 10 pc(s)

Item no:2225764

Dispatches on Thu 15 Oct

180 Set(s)Conrad Electronic

250 V DC/AC

6 A

24 V DC

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Phoenix Contact DEK-REL- 5/I/1 Relay component Nominal voltage: 5 V DC/AC Switching current (max.): 3 A 1 maker Piece 1 pc(s)

Item no:2225813

Unavailable

8 Piece(s)Conrad Electronic

250 V AC

3 A

5 V DC/AC

Piece

1 maker

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 12DC/ 1IC/ACT Relay component Nominal voltage: 12 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2209100

Unavailable

Conrad Electronic

250 V DC/AC

6 A

12 V DC

Piece

1 maker

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/ 1/MS/ACT Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2225771

Unavailable

Conrad Electronic

250 V DC/AC

6 A

24 V DC

Piece

1 maker

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/ 1ICT/ACT Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2209098

Unavailable

Conrad Electronic

250 V DC/AC

6 A

24 V DC

Piece

1 maker

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/21AU/MS Relay component Nominal voltage: 24 V DC Switching current (max.): 50 mA 1 change-over 1 pc(s)

Item no:2225770

Unavailable

Conrad Electronic

30 V AC

50 mA

24 V DC

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24UC/21-21/RW Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs Piece 1 pc(s)

Item no:2225417

Unavailable

20 Piece(s)Conrad Electronic

250 V DC/AC

6 A

24 V DC

Piece

2 change-overs

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2225814 Phoenix Contact EMG 17-REL/SG-B 24/21/M Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-

User & Safety Instructions

User & Safety Instructions 2225814 Phoenix Contact EMG 17-REL/SG-B 24/21/M Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-

Description

Relay module, with permanently soldered-in miniature circuit relay, with miniature switching diode circuit, contacts (AgSnO): Small to high power, 1 changeover contact, input voltage 24 V DC
