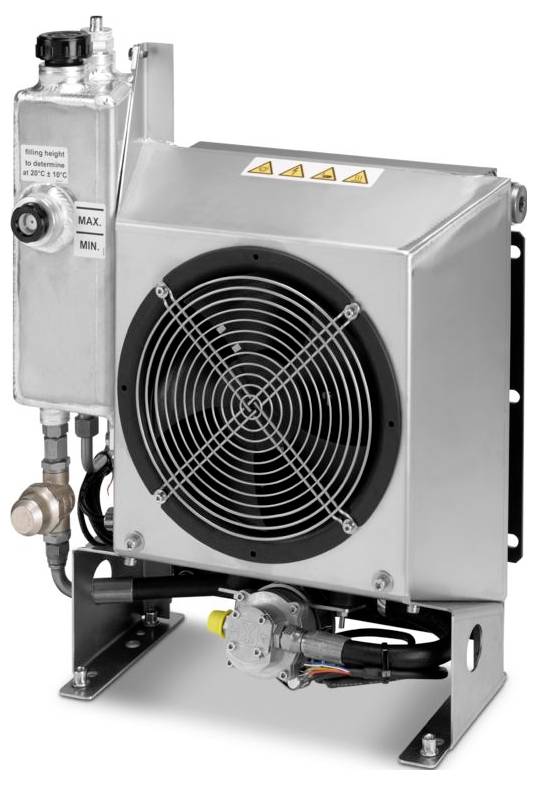

Phoenix Contact EV-HPC-PCU-01 Cooler Type 1 & Type 2 Mode 4
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Charging standard CCS type 1, CCS type 2
- Charging mode: Mode 4
- Cooling: Liquid-air cooling system (passive), semi-closed cooling circuit
- Cooling fluid- 50% water, 50% glycol (Glysofor N)
- Volume range: ≤ 60 db(A) (when the system is free-standing and a distance of 1 m)
- Supply voltage: 24 V DC (fan), 24 V DC (pump)
- Control voltage range: 0.00 V DC ... 10.00 V DC (FAN); 0.00 V DC ... 10.00 V DC (pump)
- Power consumption: Max. 1.97 A (fan), max. 1.8 A (pump)
- Functional interface: Cooling circuit:
- Interface: Quick-release couplings, inlet and return flow, for hoses with external diameter 12 mm
- Functional interface: Fan
- Cable setup 4 x 0.5 mm²
- Single conductor: Voltage supply RD, reference earth BU, speed output WH, control input YE
- Functional interface: Pump:
- Cable setup: 2 x 0.34 mm² + 5 x 0.14 mm²
- Single conductor: Voltage supply RD, reference ground BK, switch-off signal motor GN, speed output BN, control input YE, RS-485 Modbus WH can only be used by the factory, RS-485 Modbus BU can only be used by the factory
- Functional interface: Fill level sensor:
- Connection: Straight plug M12 A
- Material (casing): Aluminium, stainless steel
- Cable length 1.5 m (fan), 1.5 m (pump)
- Cooling power: Approx. 0.06 kW/K (at 2 l/min)
- Volume flow: Approx. 2 l/min (at 1 bar)
- Protection class (fan): IP55 (fan)
- Protection type (pump): IP65 (pump)
- Product type
Cooler
- Charger connectors
Type 1 & Type 2
- Charging mode
Mode 4
- Cable length
1.5 m
IP55
IP65
- Temperature range
-20 °C ... 50 °C
- Length
1.5 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3567208 Phoenix Contact EV-HPC-PCU-01 Cooler Type 1 & Type 2 Mode 4
User & Safety Instructions
User & Safety Instructions 3567208 Phoenix Contact EV-HPC-PCU-01 Cooler Type 1 & Type 2 Mode 4
Description
CHARX connect, CCS type 1, CCS type 2, cooling unit, accessories, Length: 1.5 m, with variable speed fan, with variable speed pump, for cooling the coolant of a Phoenix Contact-HPC DC charge line.
