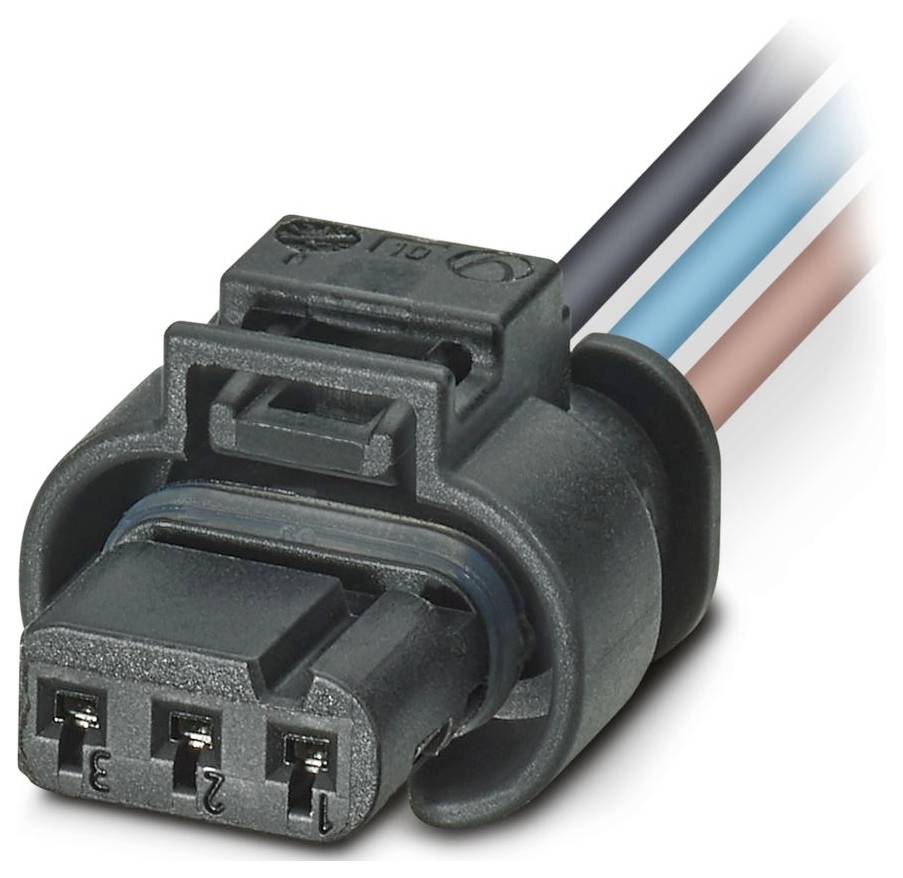

Phoenix Contact EV-T2M3SL12-CONNECTOR Connector Type 2 Mode 2
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connectors
- Compatibility: Charx connect modular
Technical specifications
- Charging standard: Type 2 GB/T
- Charging mode: Mode 2, 3, 4
- Connection type: Crimp connection, not detachable
- Color (enclosure): Black (9005)
- Material (housing): Plastic
- Material (contact surface): Silver
- Line type: Single wire
- Wire composition: 0.5 mm²
- Product type
Connector
- Charger connectors
Type 2
- Charging mode
Mode 2
- Cable length
0.5 m
- Temperature range
-30 °C ... 50 °C
- Certification marks
IEC 61851-1
- Length
0.5 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564359 Phoenix Contact EV-T2M3SL12-CONNECTOR Connector Type 2 Mode 2
User & Safety Instructions
User & Safety Instructions 3564359 Phoenix Contact EV-T2M3SL12-CONNECTOR Connector Type 2 Mode 2
Description
Charx connect modular, type 2, GB/T, connector, accessories, Single wires, length: 0.5 m, housing: black, with single wires, for controlling a 3-pin locking actuator of infrastructure charging sockets, IEC 61851-1.
Locking actuator plug, for controlling a 3-pin locking actuator of infrastructure charging sockets, for installation at charging stations for electric mobility (EVSE).
This text is machine translated.
Locking actuator plug, for controlling a 3-pin locking actuator of infrastructure charging sockets, for installation at charging stations for electric mobility (EVSE).
