Phoenix Contact EV-T2M3SOW-3AC20A-0,7M2,5E eMobility cable set Type 2 Mode 3 20 A 16.63 kW
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of charging current: AC 3-phase
- Charging current AC 20 A (3 phase)
- Charging capacity 16.63 kW (3 phase)
- Charging power class 11 kW (20 A, 3 phase)
- Operating voltage: Type 400 V/AC
- Pin assignment (power contacts):
- Connection type: Pluggable connection, separable
- NUMBER OF:5 (L1, L2, L3, N, PE)
- Rated voltage 480 V AC
- Rated current 20 A AC
- Pin assignment (signal contacts):
- Connection type: Pluggable connection, separable
- Number of:2 (CP, PP)
- Rated voltage 30 V AC
- Rated current 2 A
- Material (contact surface): Silver
- Line type: Single wire
- Wire composition: 5 x 2.5 mm² + 2 x 0.5 mm²
- Product type
eMobility cable set
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
20 A
- Charging capacity
16.63 kW
- Nominal voltage
480 V AC
- Cable length
0.7 m
- Temperature range
-30 °C ... 50 °C
- Certification marks
IEC 62196-2
- Length
0.7 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565529 Phoenix Contact EV-T2M3SOW-3AC20A-0,7M2,5E eMobility cable set Type 2 Mode 3 20 A 16.63 kW
User & Safety Instructions
User & Safety Instructions 3565529 Phoenix Contact EV-T2M3SOW-3AC20A-0,7M2,5E eMobility cable set Type 2 Mode 3 20 A 16.63 kW
Description

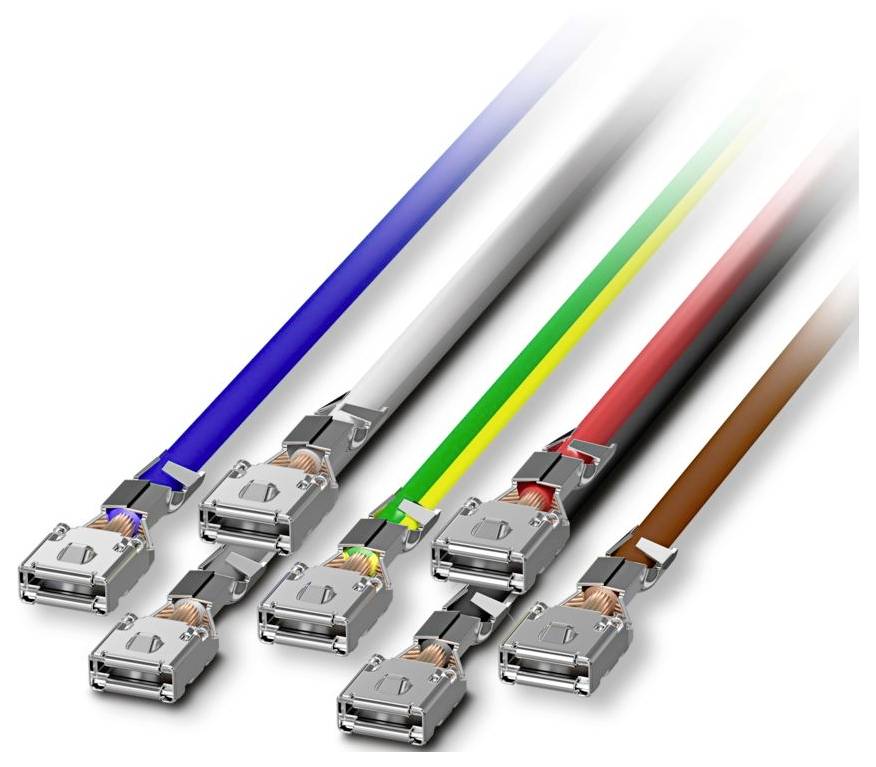

Charx connect modular, type 2, cable set for infrastructure charging socket, 20 A, 480 V AC, Accessories, single wires, length: 0.7 m, plug-in mounting, with one-sided female spade connector, exclusively for connection to generation 2 infrastructure charging sockets from Phoenix Contact, IEC 62196-2.
One-sided cables with female spade connectors for attachment to infrastructure charging sockets, for charging with alternating current (AC) from electric vehicles (EV), for installation at charging stations for electric mobility (EVSE).
This text is machine translated.
One-sided cables with female spade connectors for attachment to infrastructure charging sockets, for charging with alternating current (AC) from electric vehicles (EV), for installation at charging stations for electric mobility (EVSE).
This text is machine translated.
