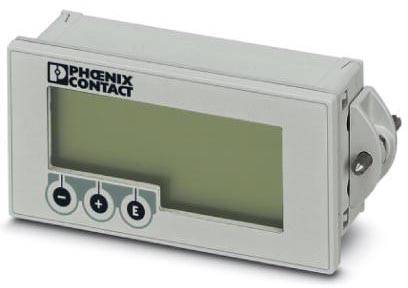

A rectangular digital display by Phoenix Contact with three buttons underneath, labelled '+', '-', and 'E'. Primarily used for industrial control systems.

Image similar

A rectangular digital display by Phoenix Contact with three buttons underneath, labelled '+', '-', and 'E'. Primarily used for industrial control systems.

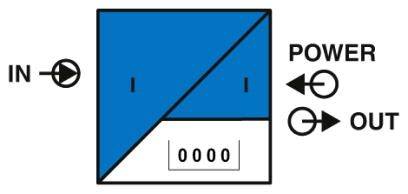

An electrical symbol for an amplifier: on the left an input signal, on the right an output signal, with labels 'IN', 'POWER', 'OUT'.

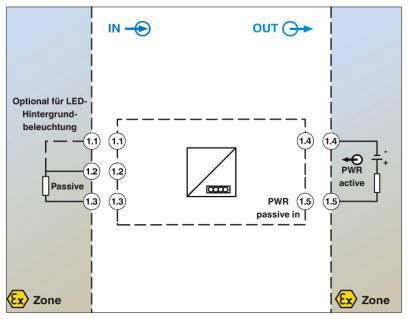

'Block diagram of a circuit with LED backlighting and PWR modules. Inputs on the left (IN), outputs on the right (OUT).'

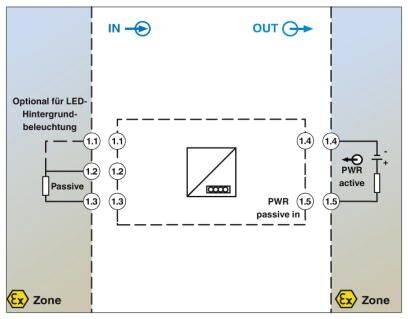

Circuit diagram shows passive and active zones in a system, with optional LED backlighting, from IN to OUT. Zones marked as explosion-hazardous.

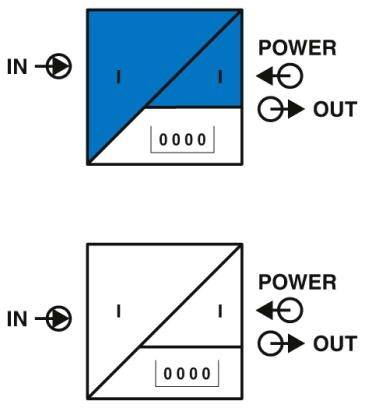

The image shows two electrical circuit diagrams with input and output ports, a power switch, and a counter.

1/5

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operation): -40 °C ... 60 °C
Max. Operating height<: 5000 m (above sea level)
Description of the input: Current measurement input
Input signal current: 4 mA ... 20 mA
Output signal current: 4 mA ... 20 mA
Wire stripping length: 9 mm
Material casing: Aluminum / polycarbonate

Product type: Digital display

Reading type: Amperage

Reading range (min.): 4 mA

Type: FA MCR-EX-DS-I-I-OLP

Reading range (max.): 20 mA

Display technology: Graphics

: IP65 (front)
IP20 (back panel)

Dim: (L x W x H) 41.5 x 96 x 48 mm

Width: 96 mm

Height: 48 mm

Length: 41.5 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2225753 Phoenix Contact FA MCR-EX-DS-I-I-OLP Digital display

Datasheet 2225753 Phoenix Contact FA MCR-EX-DS-I-I-OLP Digital display

User & Safety Instructions

User & Safety Instructions 2225753 Phoenix Contact FA MCR-EX-DS-I-I-OLP Digital display

Description

Output loop-fed process indicator with HART communication for control cabinet installation
