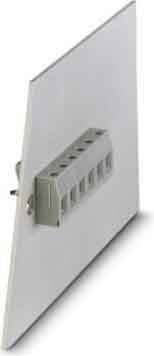

Image similar

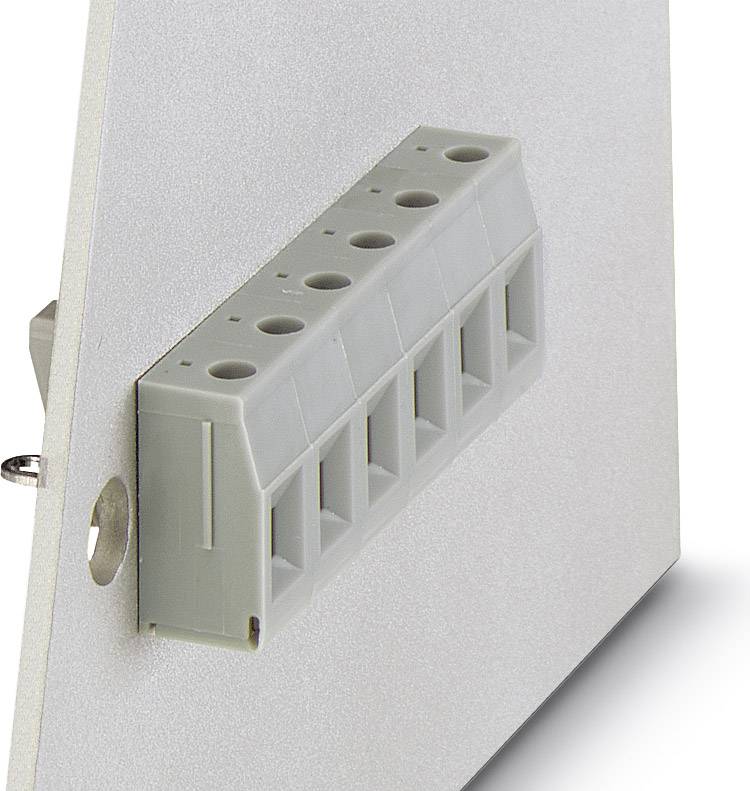

Image similar
Phoenix Contact Feedthrough terminal VDFK Total number of pins 1 0709233 50 pc(s)
EAN:
Part number:
Item no:
Product type
Feedthrough terminal
Connector type
Socket, built-in
No. of rows
1
Series
VDFK
Total number of pins
1
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.48 / piece)
€ 73.94
plus VAT.
Highlights & Details
Feed-through terminal block VDFK 4/K
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 1
Technical specifications
- Product type
Feedthrough terminal
- Connector type
Socket, built-in
- No. of rows
1
- Connector system
wire-to-board
- Series
VDFK
- Features
for enclosures
- Total number of pins
1
- Width
29.50 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
50 pc(s)
- AWG max.
10
- AWG (min.)
24
- Stripping length (max.)
8.00 mm
- Dim
(L x W x H) 10.00 x 29.50 x 25.50 mm
- Connection
Screw terminal
Solder tag
- Manufacturer part #
0709233
- Factory colour
Grey
- Industrial packaging
Yes
- Nominal voltage
500 V
- Height
25.50 mm
- Length
10.00 mm
- Connector orientation
Perpendicular (to the PCB)
- Type
VDFK 4/K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565306 Phoenix Contact Feedthrough terminal VDFK Total number of pins 1 0709233 50 pc(s)
User & Safety Instructions
User & Safety Instructions 565306 Phoenix Contact Feedthrough terminal VDFK Total number of pins 1 0709233 50 pc(s)
Description
Feed-through terminal block, Connection method: Screw connection, Solder connection, Load current : 32 A, Cross section: 0.2 mm² - 6 mm², AWG 24 - 12, Connection direction of the conductor to plug-in direction: 0 °, Width: 10 mm, Color: gray
