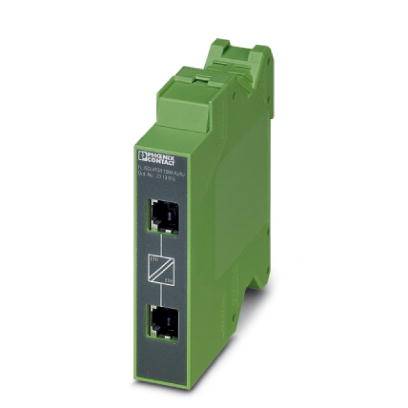

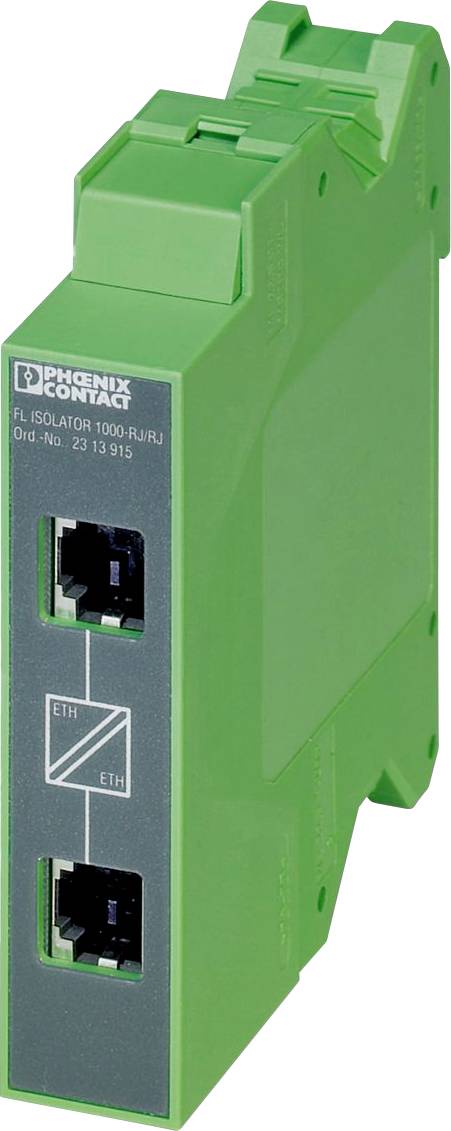

A green Phoenix Contact FL ISOLATOR 1000-AX/.RJ device with two Ethernet ports, used for network isolation and protection in industrial settings.

A green Phoenix Contact FL ISOLATOR 1000-AX/.RJ device with two Ethernet ports, used for network isolation and protection in industrial settings.

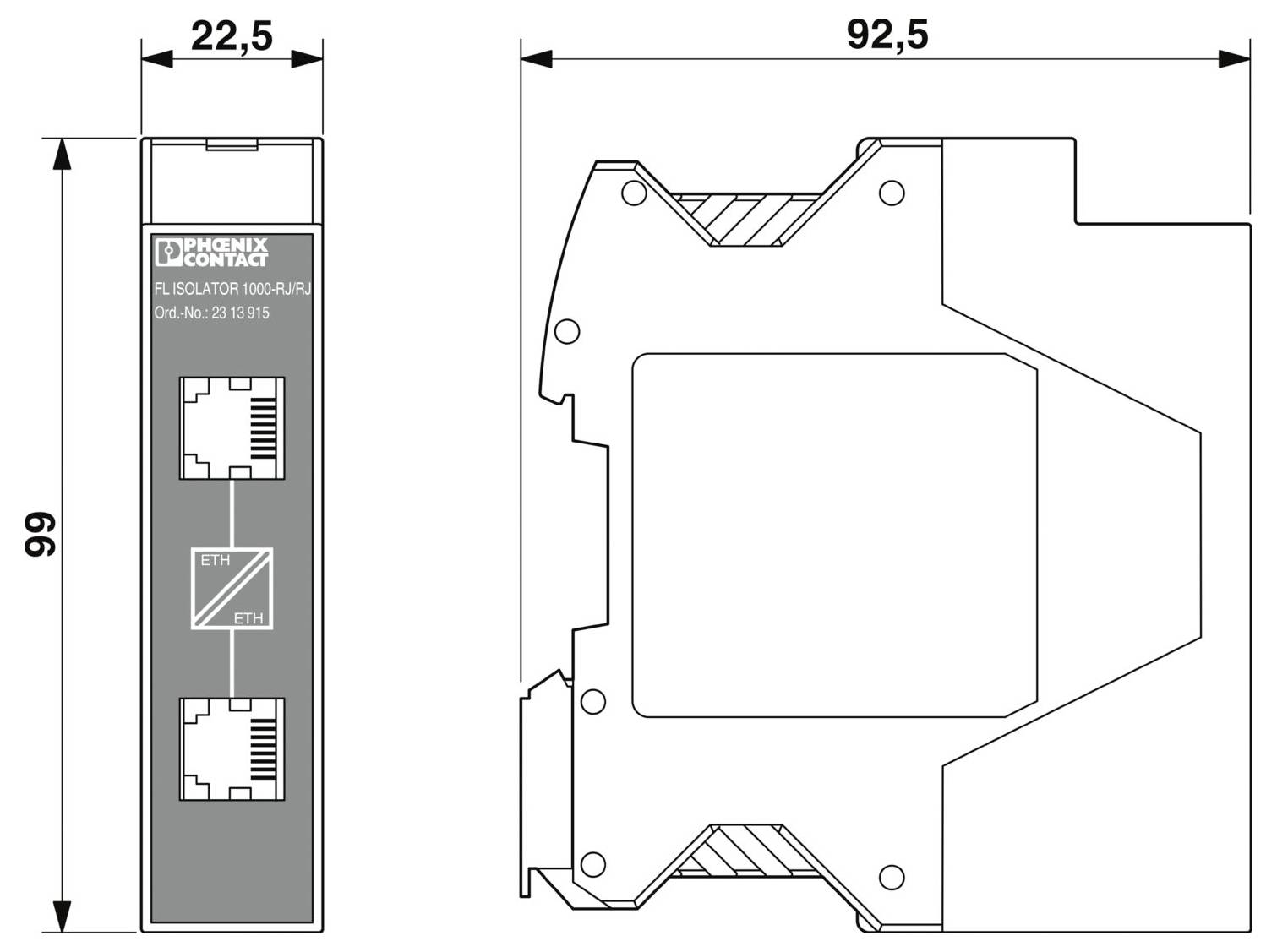

'Phoenix Contact RL ISOLATOR 100-IR/1' device dimensions: height 99mm, width 22.5mm, depth 92.5mm.

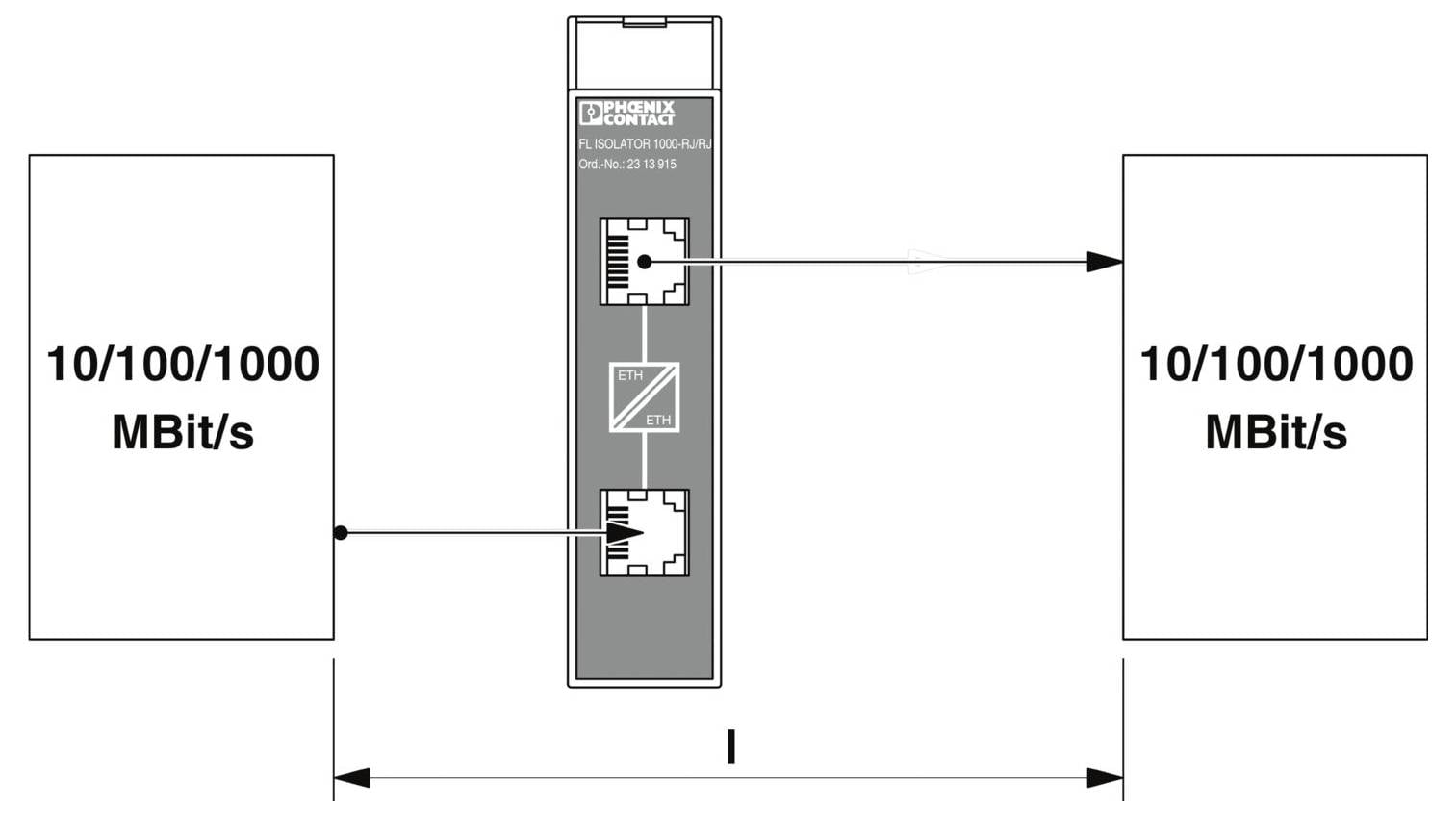

'Diagram showing a network switch connecting two segments. Both sides indicate data speed of 10/100/1000 MBit/s with directional arrows.'

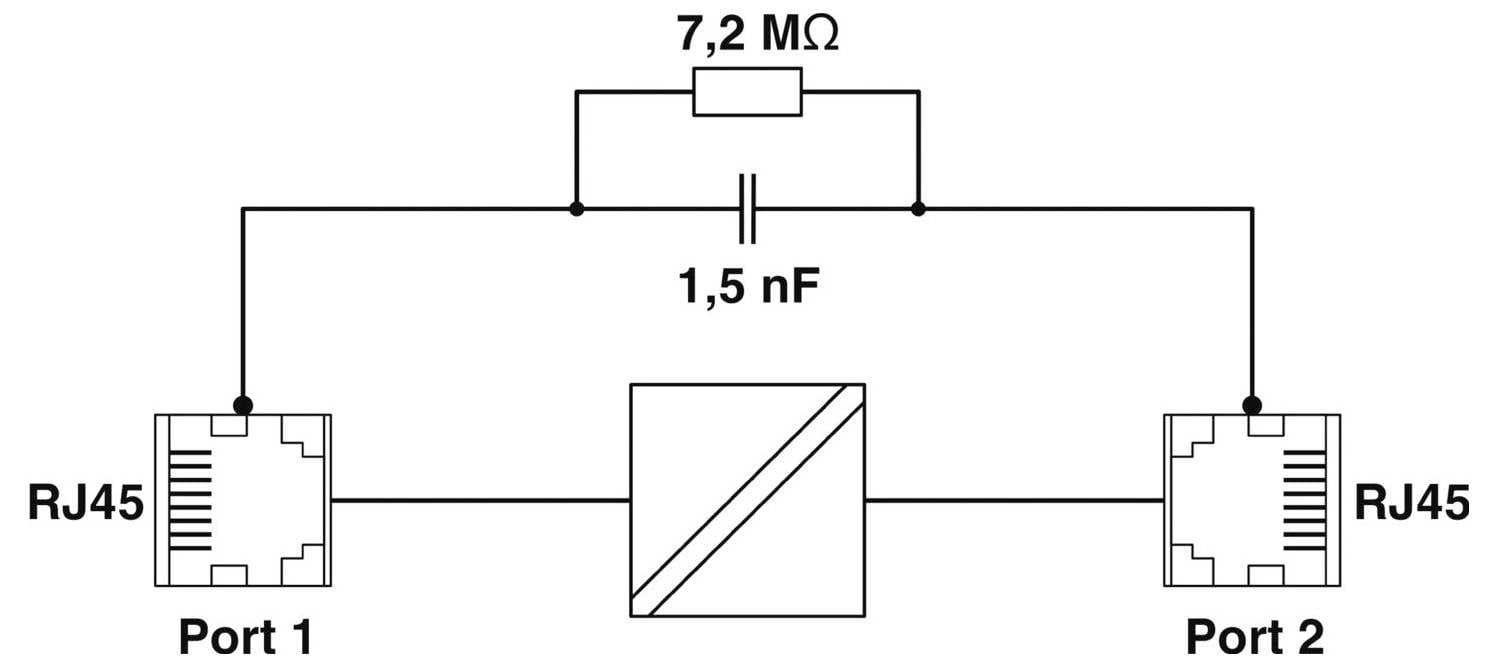

Network filter diagram: RJ45 connectors labeled 'Port 1' and 'Port 2' connected via a circuit with a 7.2 MΩ resistor and 1.5 nF capacitor.

1/4

Phoenix Contact

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Network isolator FL ISOLATOR 1000-RJ/RJ

Technical specifications

Product type: Network isolator

Ethernet ports: 2

Type: FL ISOLATOR 1000-RJ/RJ

Dim: (W x H x D) 22.5 x 99 x 92 mm

Weight: 122.300 g

Width: 22.5 mm

Height: 99 mm

Depth: 92 mm

: IP20

Max. ambient temperature: +75 °C

Min. ambient temperature: -25 °C

Transfer rate: 10 / 100 / 1000 MBit/s

: TRUE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 193739 Phoenix Contact FL ISOLATOR 1000-RJ/RJ Network isolator No. of Ethernet ports 2

User & Safety Instructions

User & Safety Instructions 193739 Phoenix Contact FL ISOLATOR 1000-RJ/RJ Network isolator No. of Ethernet ports 2

Description

Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 1 Gbps. Possible to connect two RJ45 plugs.
