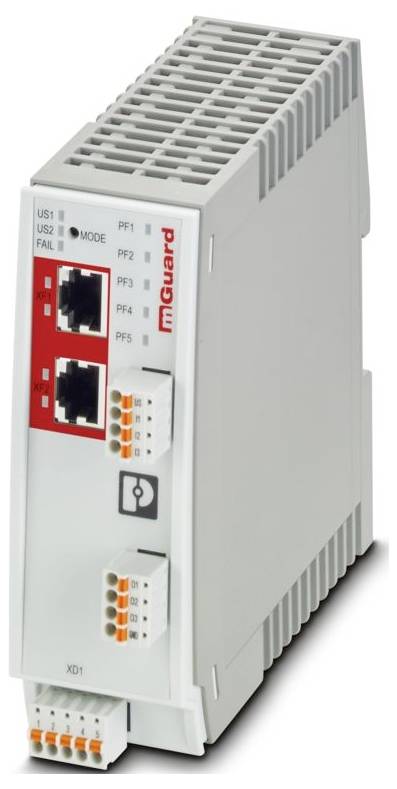

Phoenix Contact FL MGUARD 2102 LAN router 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ethernet Connection type: RJ45
- Transmission speed 10/100/1000 MBit/s
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- Transfer length 100 m (per segment)
- Signal LEDs: Supply voltage, data transmission, error, link, activity
- Number of channels: 2 (RJ45 ports)
- 2 x digital output, 2 x digital input Connection type: Push-in / tension spring, not electrically isolated
- VPN – release button connection type: Push-in/spring-cage connection
- Basic functionality: Router with firewall and VPN for 2 tunnels (fixed), plastic case, slot for SD memory card, extended temperature range router with firewall and VPN for 2 tunnels (fixed), plastic case, slot for SD memory cards, extended temperature range
- Supported browsers: Requires HTTPS support
- Special features: NAT; VPN; product certified according to IEC 62443-4-2
- 1:1 Network Address Translation (NAT) in VPN: Is supported
- Number of VPN tunnels: 2 (fixed, IPsec (IETF standard))
- Authentication: X.509v3 certificates with RSA or PSK
- DATA INTEGRITY: MD5, SHA-1, SHA 256, SHA-512
- Dynamic Host Configuration Protocol (DHCP) support: Server or relay agent
- Filtering: Inbound or outbound traffic
- Firewall data throughput: Max. 940 MBit/s (router mode, default firewall rules, unidirectional throughput); max. 850 MBit/s (stealth mode, default firewall rules, unidirectional throughput)
- Firewall rules: Simple stateful inspection firewall, secure separation for PROFIsafe according to IEC 61784-3-3
- Internet Protocol Security (IPsec) mode: ESP tunnel / ESP transport
- Link Layer Discovery Protocol (LLDP): By protocol 802.2
- Network Time Protocol (NTP) Client: Client / Server
- Remote Syslog Logging: On external server
- Routing: Standard routing, NAT, 1:1-NAT, port forwarding
- Protection against: IP spoofing, DoS and Syn Flood Protection
- ENCRYPTION METHOD: DES, 3DES, AES-128, -192, -256
- Virtual Private Network (VPN) throughput: Max. 250 MBit/s (router mode, VPN unidirectional throughput)
- Local diagnostics: US1 supply voltage US1 LED green; one LED per port link active / Speed LED green / green / yellow
- Maximum power loss at rated condition: Typical. 2.88 W
- SUPPLY VOLTAGE (DC) 24 V DC
- Supply voltage range: 12 V DC ... 36 V DC
- Connection supply: Via COMBICON, max. Conductor cross-section 1.5 mm²
- Remaining ripple: 3.6 VPP (within the permissible voltage range)
- Power consumption max. 1 A
- Typical current consumption 120 mA (at US = 24 V DC)
- Signal contact Control voltage 24 V DC (typical)
- Signal contact for control current 250 mA (short-circuit-proof)
- Connection type: RJ45-socket, shielded
- Product type
LAN router
- Transfer rate
10 / 100 / 1000 MBit/s
- 10/100/1000 Mbps ports
2 x
- Interfaces
RJ45
- Router features
Built-in Firewall
- LAN transfer rate
1000 MBit/s
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583213 Phoenix Contact FL MGUARD 2102 LAN router 10 / 100 / 1000 MBit/s
User & Safety Instructions
User & Safety Instructions 3583213 Phoenix Contact FL MGUARD 2102 LAN router 10 / 100 / 1000 MBit/s
Description
Security router series, 2 RJ45 ports 10/100/1000 MBit/s, NAT, VPN, simple stateful inspection firewall, secure separation for PROFIsafe according to IEC 61784-3-3.
