Green modular network connector with two metal Ethernet socket ports, positioned vertically one above the other.

Image similar

Green modular network connector with two metal Ethernet socket ports, positioned vertically one above the other.

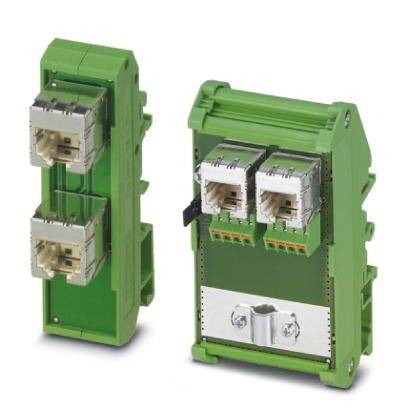

A green electrical plug module with two RJ45 ports, used for data connection in industrial or technical applications.

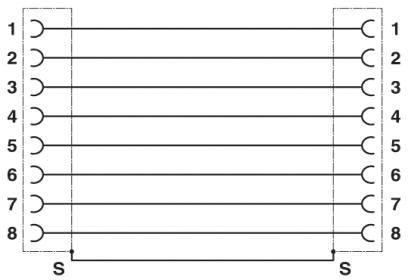

Diagram of a data interconnection between two routers linked by eight parallel cable connections (1-8)

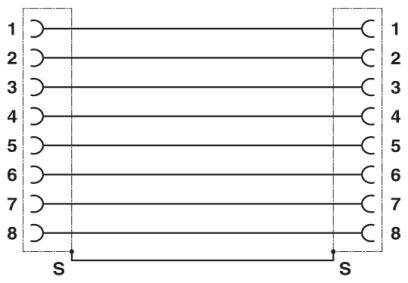

'Switchboard diagram with eight horizontal connections, numbered from 1 to 8 on both sides. Two letters S at the bottom.'

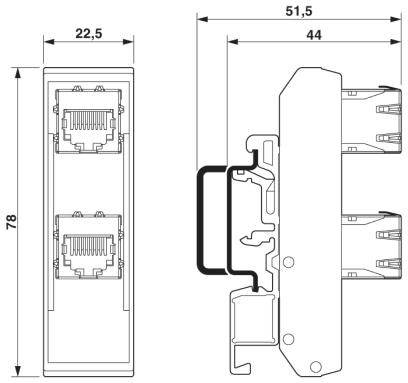

Technical drawing of a double network connection with dimensional specifications: Height 78 mm, Width 22.5 mm, Depth 51.5 mm.

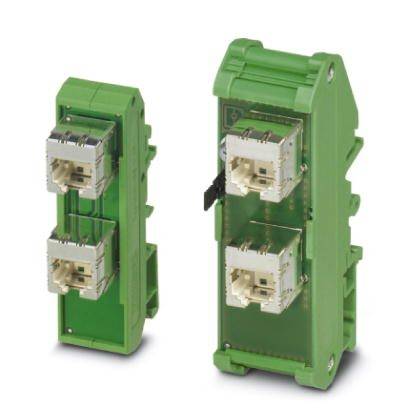

Two green plug-in modules, each with two white socket slots. A module is positioned on the left, with another module shown from a side view on the right.

1/6

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operating): -40 °C - +85 °C.
Ambient temperature (storage/transport): -40 °C - +85 °C.
Protection class: IP20
Net weight 40 g
Material casing PA 6.6-FR
Colour: green
Transmission length 100 m (incl. patch cables)

Product type: Patch panel

Transfer rate: 10 / 100 MBit/s

Port: 1 port

Width: 22.5 mm

Height: 78 mm

Length: 44 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2137151 Phoenix Contact FL-PP-RJ45/RJ45-B 1 port Patch panel

User & Safety Instructions

User & Safety Instructions 2137151 Phoenix Contact FL-PP-RJ45/RJ45-B 1 port Patch panel

Description

Simple and convenient extension for RJ45-cable.

This text is machine translated.
