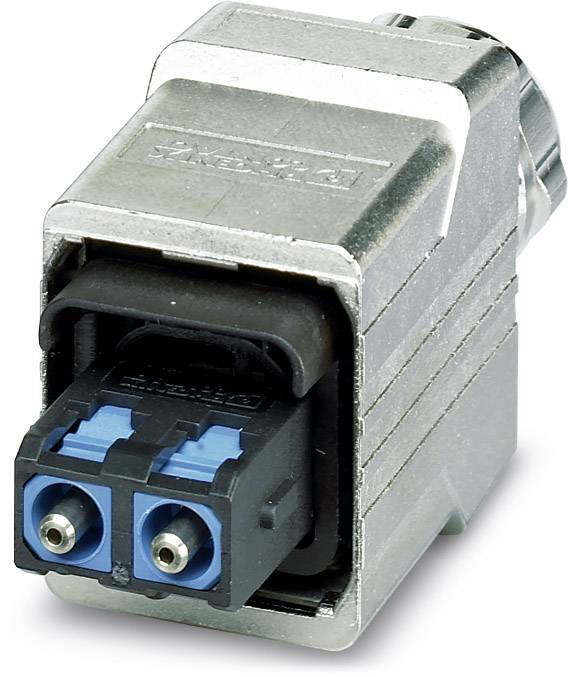

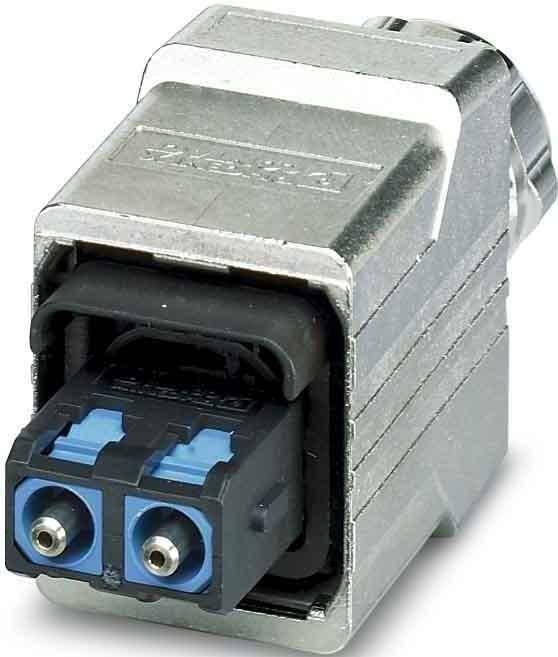

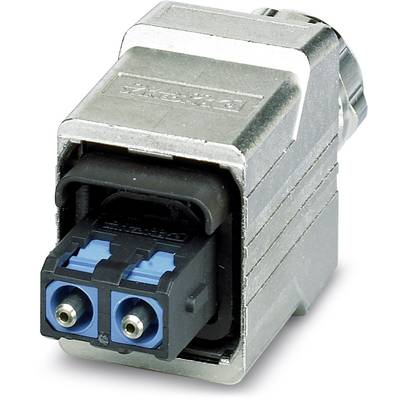

Phoenix Contact FO connector VS-PPC-C1-SCRJ-MNNA-PG9-A4D-C Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
Free suspension
Enclosure material
Zinc (die-cast)
Connection
SC-RJ
Functions (FO)
Connector
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
FO connector
- Mounting type
Free suspension
- Manufacturer
Phoenix Contact
- Type
Plug
- Enclosure material
Zinc (die-cast)
- Connection
SC-RJ
- Functions (FO)
Connector
- Channels
2
- Protection class
IP67
- Factory colour
Silver
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+70 °C
- Compatible with
Polymer
- Width
30 mm
- Height
22 mm
- Length
65.9 mm
- Manufacturer part #
1608032
- Content
1 pc(s)
- Connector type
Plug, straight
Push-pull latch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788845 Phoenix Contact FO connector VS-PPC-C1-SCRJ-MNNA-PG9-A4D-C Connector
User & Safety Instructions
User & Safety Instructions 788845 Phoenix Contact FO connector VS-PPC-C1-SCRJ-MNNA-PG9-A4D-C Connector
Description
Fiber optic connector SCRJ, IP67, with push-pull interlocking, metal housing, duplex, with fast connection technology, for polymer fiber 980/1000 µm, for individual wire diameter 2.2 mm, for cable cross section 6.5 mm ... 9.5 mm
