Phoenix Contact HC-EVO-B10PT-BWSC-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
M25
Connection
Plug & Clip
Features
Cable input (lateral, straight)
Series
HC-EVO-B10
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Connector set
- Features
Cable input (lateral, straight)
- Series
HC-EVO-B10
- Thread size
M25
- Connection
Plug & Clip
- Case material
Plastic
- Factory colour
Black
IP66
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Number of pins
10
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
10 + PE
- Type
Connector set with push-in connection
103.512
116.375 mm
106.905 mm
Single locking lever
500 V
1
10
Hermaphrodite
Other
Other
100-100 °C
-40-100 °C
V0
6 kV
Insulation piercing connection
Other
IK09
TRUE
III
3
0.14-2.5 mm²
0.14-2.5 mm²
IP66
TRUE
Other
Other
Other
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 556302 Phoenix Contact HC-EVO-B10PT-BWSC-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 556302 Phoenix Contact HC-EVO-B10PT-BWSC-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
Description

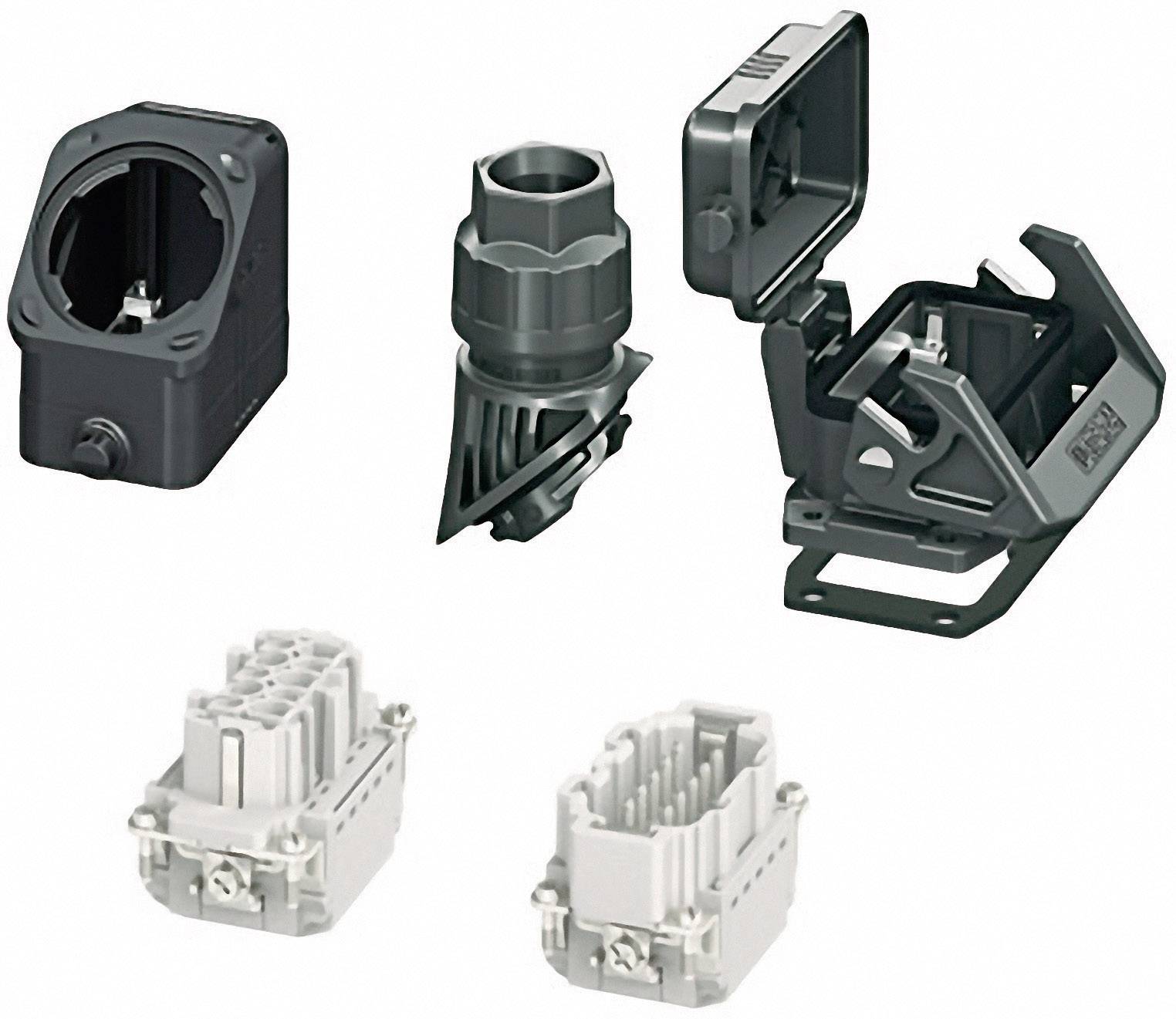

Scope of delivery
- Attachment casing with longitudinal rail, flat seal and protective cover, height 30.5 mm 1407633
- Sleeve housing for long handle, height 60.5 mm 1407626
- Socket insert 10 + PE 1407729
- Pin insert 10 + PE 1407730
- Cable gland, size M25, wire diameter: 9 - 17 mm 1407670
