Phoenix Contact HC-KIT-B06-R02 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Connection
Screws
Case material
Aluminium, die cast
IP rating
IP65
Core cross section (min.)
0.5 mm²
Datasheet (PDF)
Technical specifications
- Cable diameter: 9 mm ... 13 mm
- Design: B6
- Rated voltage: 500 V
- Rated current 16 A
- Cable outlet: Lateral
- Dimensioning surge voltage: 6 kV
- Connection cross-section AWG: 20 ... 14
- External diameter of the cable: 6 mm ... 12 mm
- Length of mounting cut-out 52 mm
- Wide mounting cut-out 35 mm
- Material contact carrier: PC
- Material locking bracket: PA
- Flammability class according to UL 94: V0
- M20 cable gland
- Product type
Connector set
- Connection
Screws
- Case material
Aluminium, die cast
IP65
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
- Number of pins
6
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
6 + PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136589 Phoenix Contact HC-KIT-B06-R02 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136589 Phoenix Contact HC-KIT-B06-R02 Content: 1 pc(s)
Description

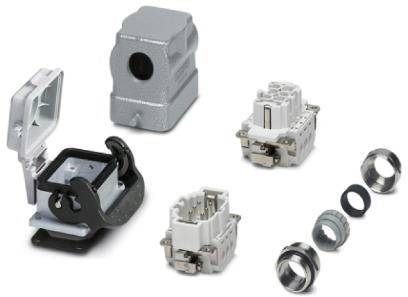

Connector set, consisting of: B6 grommet and attachment housing, 6-pin plug and socket insert, M20 cable gland
