Phoenix Contact HC-KIT-B16-R01 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Connection
Screws
Case material
Aluminium, die cast
IP rating
IP65
Core cross section (min.)
0.5 mm²
Datasheet (PDF)
Technical specifications
- Cable diameter: 11 mm ... 16 mm
- Design: B16
- Rated voltage: 500 V
- Rated current 16 A
- Cable outlet: Straight
- Dimensioning surge voltage: 6 kV
- Connection cross-section AWG: 20 ... 14
- External diameter of the cable: 11 mm ... 17 mm
- Length of mounting cut-out: 86 mm
- Wide mounting cut-out 35 mm
- Material contact carrier: PC
- Material locking bracket: PA
- Flammability class according to UL 94: V0
- M25 cable gland
- Product type
Connector set
- Connection
Screws
- Case material
Aluminium, die cast
IP65
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
- Number of pins
16
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
16 + PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136927 Phoenix Contact HC-KIT-B16-R01 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136927 Phoenix Contact HC-KIT-B16-R01 Content: 1 pc(s)
Description

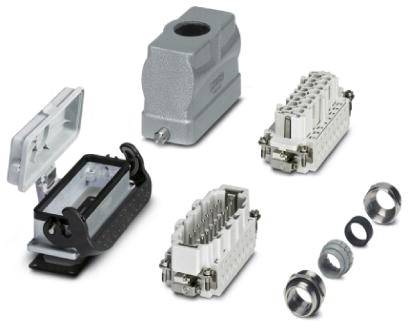

Connector set, consisting of: B16-bushing and attachment housing, 16-pin plug and socket insert, M25-cable gland
