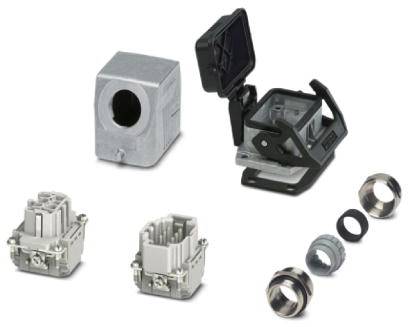

Phoenix Contact HC-STA-B06PT-BWSC-LS-M20-ELCAL Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Connection
Push-in connector
Case material
Aluminium, die cast
IP rating
IP66
IP67
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Design: B6

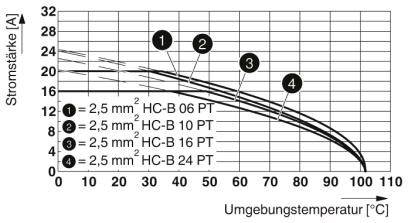

- Rated current 16 A
- Cable outlet: Lateral
- Dimensioning surge voltage: 6 kV
- Cross section AWG: 26 ... 14
- External diameter of the cable: 6 mm ... 12 mm

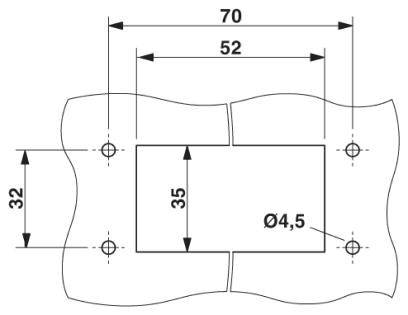

- Length of mounting cut-out 52 mm
- Wide mounting cut-out 35 mm
- Material contact carrier: PC
- Material locking bracket: PA
- Flammability class according to UL 94: V0
- Integrated protective cover: Yes
- Protection class IP67: When connected
- Product type
Connector set
- Connection
Push-in connector
- Case material
Aluminium, die cast
IP66
IP67
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²

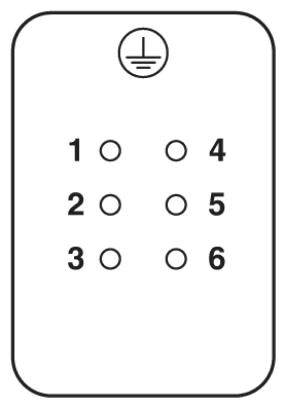

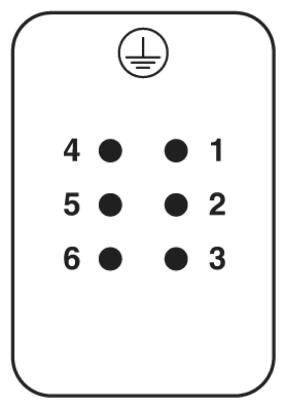

- Number of pins
6
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
6 + PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137516 Phoenix Contact HC-STA-B06PT-BWSC-LS-M20-ELCAL Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137516 Phoenix Contact HC-STA-B06PT-BWSC-LS-M20-ELCAL Content: 1 pc(s)
Description
Connector set, number of pins: 6, material: Die-cast aluminum, seawater-resistant, connection type: Push-in connection, connection cross-section: AWG 26-14, cable outlet: Lateral
