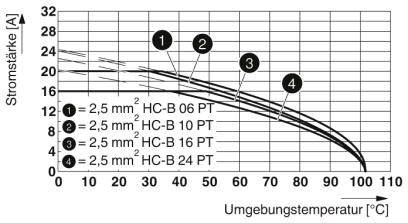

![Graph shows current [A] against ambient temperature [°C] for cable types: 2.5 mm² HC-B 06 PT, HC-B 10 PT, HC-B 16 PT, HC-B 24 PT.](https://asset.conrad.com/media10/isa/160267/c1/-/en/002136606TI02/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/6
Image similar
Phoenix Contact HC-STA-B24PT-BWD-LT-M32-ELCAL Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Connection
Push-in connector
Case material
Aluminium, die cast
IP rating
IP66
IP67
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Design: B24
- Rated current 16 A
- Dimensioning surge voltage: 6 kV
- Cross section AWG: 26 ... 14
- Outer diameter of the cable: 15 mm ... 21 mm

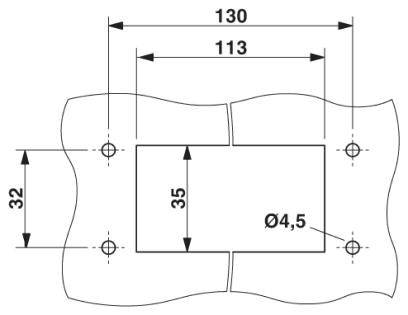

- Length of mounting cut-out 113 mm
- Wide mounting cut-out 35 mm
- Material contact carrier: PC
- Material locking bracket: PA
- Flammability class according to UL 94: V0
- Integrated protective cover: no.
- Product type
Connector set
- Connection
Push-in connector
- Case material
Aluminium, die cast
IP66
IP67
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²

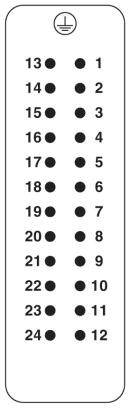

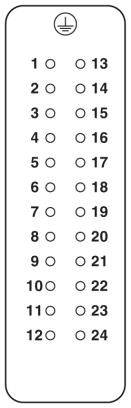

- Number of pins
24
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
24 + PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136606 Phoenix Contact HC-STA-B24PT-BWD-LT-M32-ELCAL Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136606 Phoenix Contact HC-STA-B24PT-BWD-LT-M32-ELCAL Content: 1 pc(s)
Description

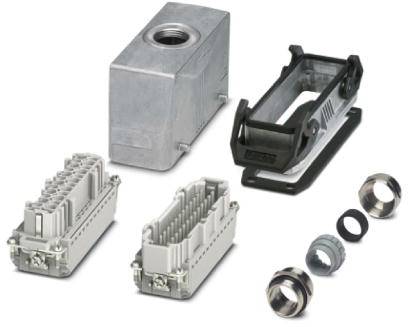

Connector set, number of pins: 24, material: Die-cast aluminum, seawater-resistant, connection type: Push-in connection, connection cross-section: AWG 26- 14
