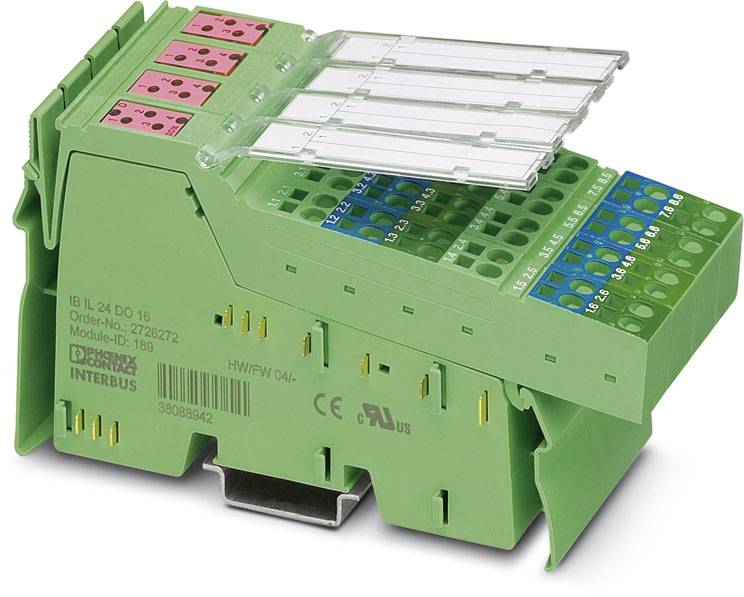

Phoenix Contact IB IL 24 DO 16-PAC 2861292 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC add-on module
- Type
IB IL 24 DO 16-PAC
- No. of outputs (max.)
16
- No. of outputs
16 x
- Output signal current
0.5 A
- Max. output current per channel
500 mA
- Output signal voltage
24 V
- Operating voltage
24 V DC
- Height
140.5 mm
- Length
71.5 mm
- Width
48.8 mm
IP20
- Dim
(L x W x H) 71.5 x 48.8 x 140.5 mm
- Field bus system
Local bus
- Manufacturer part #
2861292
- Response time tS
0 ms
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
48.6
141.297 mm
70.43 mm
FALSE
DC
FALSE
0
0
0
0
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
None
None
FALSE
FALSE
IP20
FALSE
FALSE
0
None
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
19.2-30 V
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197155 Phoenix Contact IB IL 24 DO 16-PAC 2861292 PLC add-on module 24 V DC
Description
The digital output terminals are designed for the connection of digital actors like electromagnetic valves, protections or optical registration units.
