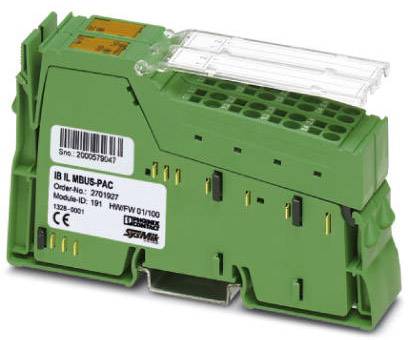

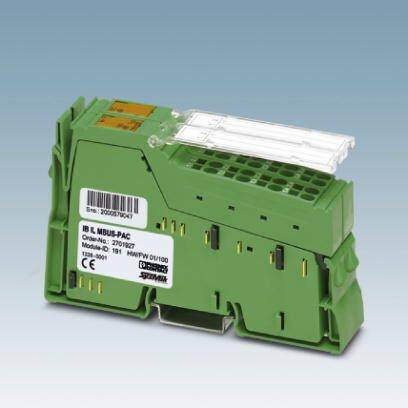

Phoenix Contact IB IL MBUS-PAC 2701927 In-line terminal 7.5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Colour: green
- Net weight 125 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Wire stripping length: 8 mm
- Conductor cross-section rigid min: 0.08 mm²
- Conductor cross-section rigid max. 1.5 mm²
- Conductor cross-section flexible min.: 0.08 mm²
- Conductor cross-section flexible max. 1.5 mm²
- Conductor cross-section AWG min: 28
- Conductor cross-section AWG max. 16
- Transmission speed 500 kBit/s.
- Product type
In-line terminal
- Type
IB IL MBUS-PAC
- Operating voltage
7.5 V DC
- Height
119.8 mm
- Length
71.5 mm
- Width
24.4 mm
IP20
- Dim
(L x W x H) 71.5 x 24.4 x 119.8 mm
- Connection
Spring-loaded connector
- Max. current consumption
65 mA
- Manufacturer part #
2701927
- Fitting type (details)
Mounting rail
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209806 Phoenix Contact IB IL MBUS-PAC 2701927 In-line terminal 7.5 V DC
Datasheet 2209806 Phoenix Contact IB IL MBUS-PAC 2701927 In-line terminal 7.5 V DC
User & Safety Instructions
User & Safety Instructions 2209806 Phoenix Contact IB IL MBUS-PAC 2701927 In-line terminal 7.5 V DC
Description

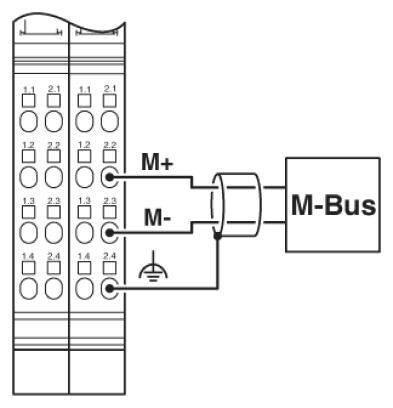

M-Bus connection for up to 30 subscribers. Transmission rate adjustable from 300 baud ... 19200 Baud Parameterization via process data. Process data width 16 words. Diagnostic and status indicators.
