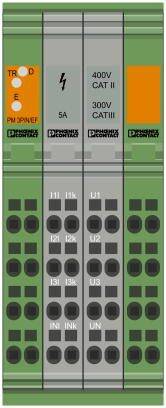

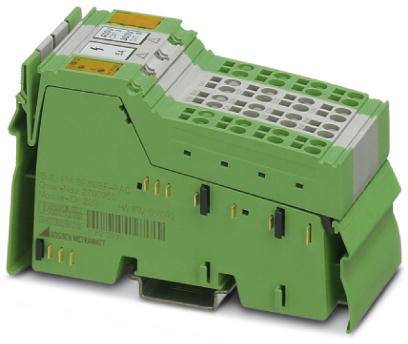

Phoenix Contact IB IL PM 3P/N/EF-PAC 2700965 In-line terminal 7.5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight 200 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Transmission speed 500 kBit/s.
- Product type
In-line terminal
- Type
IB IL PM 3P/N/EF-PAC
- Operating voltage
7.5 V DC
- Height
119.8 mm
- Length
71.5 mm
- Width
48.8 mm
IP20
- Dim
(L x W x H) 71.5 x 48.8 x 119.8 mm
- Connection
Inline data shunter
- Max. current consumption
78 mA
- Manufacturer part #
2700965
- Fitting type (details)
Mounting rail
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137345 Phoenix Contact IB IL PM 3P/N/EF-PAC 2700965 In-line terminal 7.5 V DC
User & Safety Instructions
User & Safety Instructions 2137345 Phoenix Contact IB IL PM 3P/N/EF-PAC 2700965 In-line terminal 7.5 V DC
Description

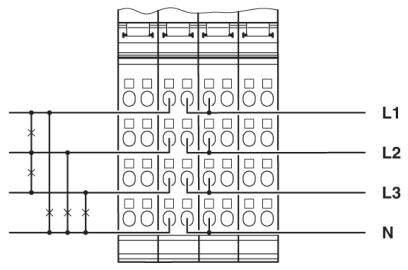

4 inputs, 1 A AC ... 5 A AC for phase currents and neutral conductor currents. 3 inputs for external conductor voltages up to 690 V AC, directly connectable. Freely trigger measurement intervals. Harmonics analysis. Determination of maximum values. Operating hours counter. Energy meter. Bimetal filtering. Short-time control.
