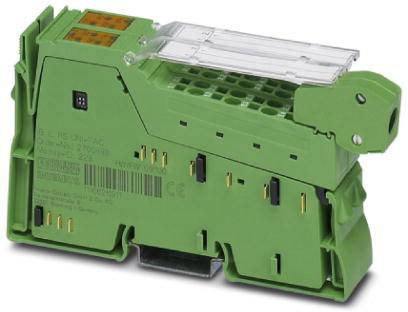

Phoenix Contact IB IL RS UNI-PAC 2700893 In-line terminal 7.5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Colour: green
- Net weight 135 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Wire stripping length: 8 mm
- Conductor cross-section rigid min: 0.08 mm²
- Conductor cross-section rigid max. 1.5 mm²
- Conductor cross-section flexible min.: 0.08 mm²
- Conductor cross-section flexible max. 1.5 mm²
- Conductor cross-section AWG min: 28
- Conductor cross-section AWG max. 16
- Transmission speed 500 kBit/s.
- Power consumption: Type. 585 mW (to UL)
- Product type
In-line terminal
- Type
IB IL RS UNI-PAC
- No. of inputs
1 x
- No. of outputs
1 x
- Operating voltage
7.5 V DC
- Height
135 mm
- Length
71.5 mm
- Width
24.4 mm
IP20

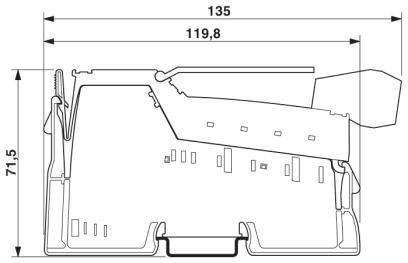

- Dim
(L x W x H) 71.5 x 24.4 x 135 mm
- Connection
Spring-loaded connector
- Max. current consumption
78 mA
- Manufacturer part #
2700893
- Fitting type (details)
Mounting rail
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209779 Phoenix Contact IB IL RS UNI-PAC 2700893 In-line terminal 7.5 V DC
Datasheet 2209779 Phoenix Contact IB IL RS UNI-PAC 2700893 In-line terminal 7.5 V DC
User & Safety Instructions
User & Safety Instructions 2209779 Phoenix Contact IB IL RS UNI-PAC 2700893 In-line terminal 7.5 V DC
Description

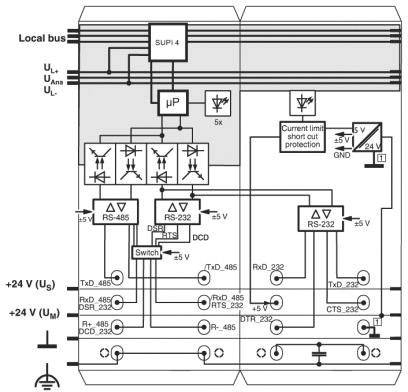

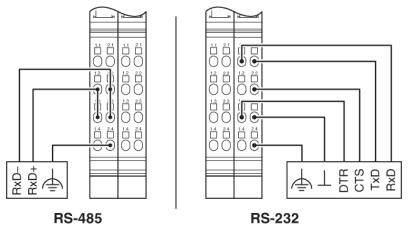

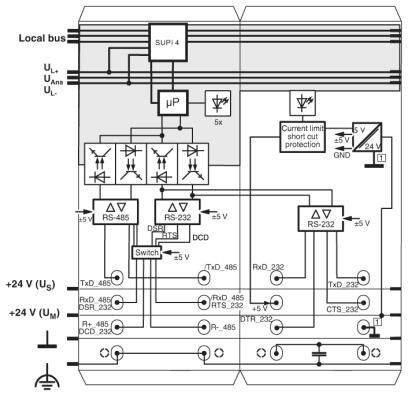

One serial input and output channel in RS-232, RS-422 and RS-485 versions. Support for various protocols. Transmission rate adjustable up to 250000 baud. Number of data bits, stop bits and parity can be set. Parameterization via process data or PCP. Process data width adjustable via DIP switches: 7, 15 or 31 words.
