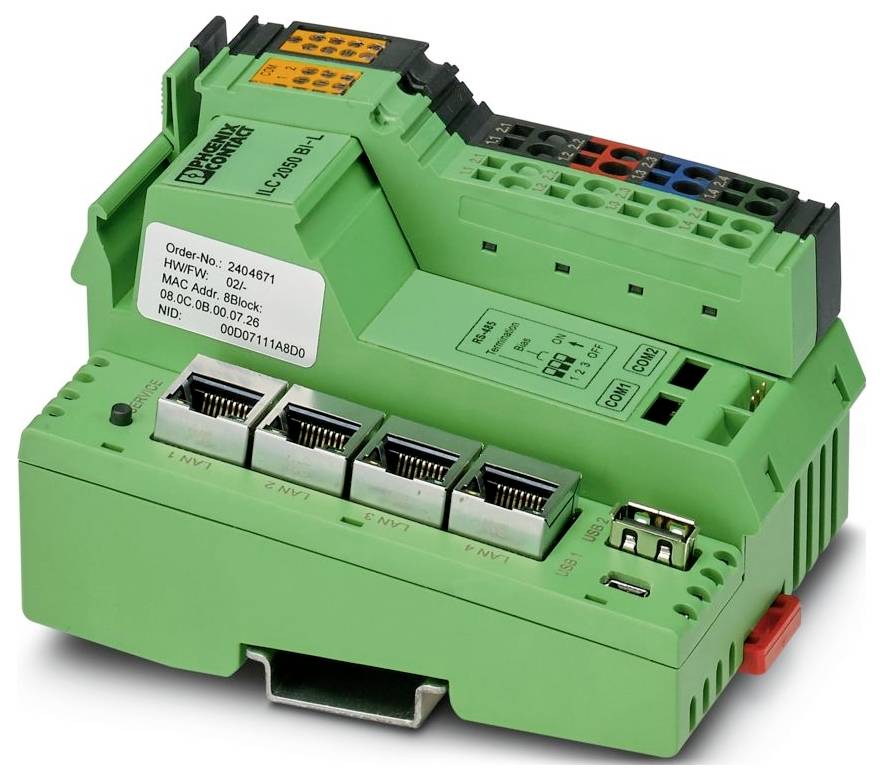

Phoenix Contact ILC 2050 BI-L 2404671 Controller 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- inLine controller product family
- Connection type: MicroSD-slot
- Conductor cross-section flexible: 0.08 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.08 mm² ... 1.5 mm².
- Wire cross-section AWG: 28 ... 16
- Width 80 mm
- Height: 1.8" (119.8 mm)
- Depth: 71.5 mm
- Colour: Green (RAL 6021)
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 55 °C (observe De-rating)
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Mounting type: Rail mounting
- Permissible air humidity (operation): 0 % ... 75 % (according to DIN EN 61131-2)
- Stripped length: 8 mm
- Mounting position: Horizontal;alternative installation positions are possible, but can lead to a thermal power reduction.
- Transmission speed 10/100 MBit/s
- Number of interfaces: 1 (top side)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Location: Use indoors
- Ethernet: Ethernet
- Bus system: MicroSD
- Supply voltage range: 19.2 V DC ... 30 V DC
- Permissible humidity (storage/transport): 0 % ... 75 % (according to DIN EN 61131-2)
- Note for application: Only for industrial use
- Supported protocols: BACnet/IP;BACnet MS/TP (only on COM1 and COM2);Modbus/TCP;Modbus/RTU;KNX IP;DALI;DALI-2;LON IP;EnOcean;SMI;MP-Bus;SNMP;M-Bus;MQTT;OPC UA;Simple OpenADR;SMS;CSV;oBIX;Milestone Video Interface;LonMark TP/FT
- Supply: Supply
- Air pressure (storage/transport): 70 hPa ... 106 kPa (up to 3000 m üNN)
- Typical current consumption: ≤ 170 mA (at rated voltage without local bus subscriber)
- Current consumption maximum ≤ 1.5 A
- Number of channels: 2
- Functionality: Functionality
- USB USB USB
- Supply voltage:24 V DC -15 % / +20 % (according to EN 61131-2)
- Real-time clock: Yes
- System requirements: System requirements
- Supported programming languages: Niagara Framework®
- inLine connection plug inLine connection plug
- Installation location: Control cabinet
- GRP_Temperature class T4
- IEC-61131 runtime system: IEC-61131 runtime system
- Data memory 2 GB (eMMC)
- Data remanence memory: 2 GByte (eMMC)
- RAM 1024 MB DDR3 SDRAM
- Engineering tool: Emalytics
- SUPPLY VOLTAGE (DC) 24 V DC
- Potential: Potential
- MicroSD: MicroSD
- Resistance to dangerous gases according to DIN 40046-36/ DIN 40046-37: Sulphur dioxide (SO2) 10 ± 0.3 ppm (testing time 10 days), hydrogen sulphide (H2S) 1 ±0.3 ppm (testing time 4 days), in each case at 25 °C and 75 % humidity
- Product type
Controller
- Interfaces
USB-A
RJ45
MicroSD
- Operating voltage
24 V DC
- Height
119.8 mm
- Length
71.5 mm
- Width
80 mm
IP20
- Dim
(L x W x H) 71.5 x 80 x 119.8 mm
- Connection
Spring-loaded connector
- Manufacturer part #
2404671
- Type
ILC 2050 BI-L
- Fitting type (details)
Carry rail mounting
- Real-time clock
Yes
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Depth
70.030346 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579137 Phoenix Contact ILC 2050 BI-L 2404671 Controller 24 V DC
User & Safety Instructions
User & Safety Instructions 3579137 Phoenix Contact ILC 2050 BI-L 2404671 Controller 24 V DC
Description
Modular inLine controller for automation applications in building services, infrastructure and power engineering. Has two logically separated IP-address interfaces each with 2 integrated fast-Ethernet-ports. Configurable assignment of Ethernet ports to use the spanning tree protocol, daisy chain and redundant ring structures for optimal availability. It includes 4 LAN, 2 USB and 2 RS-485 interfaces. It enables direct connection of LonMark TP/FT-10 networks. The data point connections can be extended by up to 63 inLine-I/O-modules.
