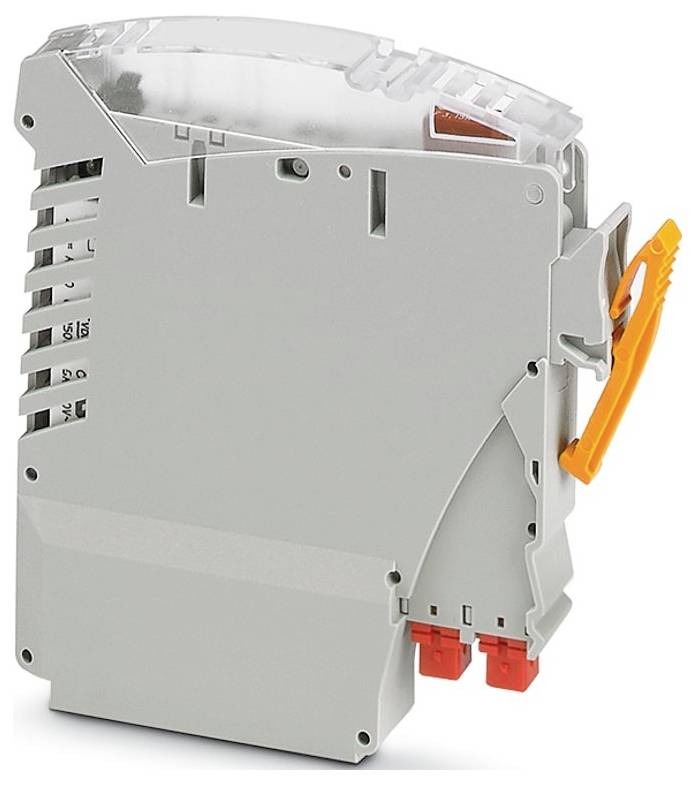

Phoenix Contact IOA REL 24V DO/BFI/3.0A/EX 2910153 Relay module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: VIP I/O marshaling
- Connector type: Pin strip
- Width: 10.3 mm
- Height: 64.2 mm
- Depth: 72.9 mm
- Colour: Grey (RAL 7042)
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: IEC 60664; DIN EN 50178
- Mounting type: Plug-in assembly
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 0 % ... 95 % (non-condensing)
- All mounting positions permitted
- ATEX
- IECEx: IECEx
- Identification: Class I, div. 2, GROUPS A, B, C, D T4;CLASS I, zone 2, AEx ec NC IIC T4 GC;ex ec NC IIC T4 GC
- UL, USA / Canada: UL, USA / Canada
- Operating mode 100 % ED
- Certificate: PxCIF23UKEX2910153X
- Mounting instructions: Plug for VIP/... socket...
- Protection: Reverse polarity protection | reverse polarity protection diode;free-wheeling diode | flyback diode
- UKEX
- Switching voltage maximum 24 V DC
- Application: Output function
- Data maintenance status: Data maintenance stand
- Date of last data maintenance: 12.11.2025
- NOMINAL INPUT VOLTAGE UN 24 V DC
- Input voltage range referred to UN: 0.9 ... 1.1
- Typical input current at UN 13.5 mA
- Operating voltage display: Yellow LED
- Contact version 1 changeover contacts
- Continuous current rating: 3 A (fuse limited)
- Contact type: Power contact
- Switching: Switching
- Safety specifications: Safety specifications
- Input voltage UI 24 V DC
- Mechanical life: 2x 107 switching cycles
- Offensive side: Pathogen side
- Typical response time: 5 ms
- Typical fall-back time: 8 ms
- Type of switch contact: Single contact
- Contact material: AgSnO
- Minimum switching voltage 5 V (at 100 mA)
- Minimum switching current 10 mA (at 12 V)
- Switch-off power (resistive load) maximum: 140 W (at 24 V DC)
- Coil voltage 24 V DC
- Control circuit: Control circuit
- Input current II 13.5 mA
- CSA, USA/Canada: CSA, USA/Canada
- Product type
Relay module
- Type
IOA REL 24V DO/BFI/3.0A/EX
- No. of outputs (max.)
1
- No. of outputs
1 x
- Output signal current
3 A
- Max. output current per channel
3 A
- Output signal voltage
24 V
- Operating voltage
24 V DC
- Height
64.2 mm
- Length
72.9 mm
- Width
10.3 mm
IP20
- Dim
(L x W x H) 72.9 x 10.3 x 64.2 mm
- Max. current consumption
13.5 mA
- Manufacturer part #
2910153
- Fitting type (details)
Push-fit
- Response time tS
5 ms
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- No. of relay outputs (max.)
1
- Ex Zoning
2
- Depth
72.9 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580318 Phoenix Contact IOA REL 24V DO/BFI/3.0A/EX 2910153 Relay module 24 V DC
User & Safety Instructions
User & Safety Instructions 3580318 Phoenix Contact IOA REL 24V DO/BFI/3.0A/EX 2910153 Relay module 24 V DC
Description
Relay module for VIP I/O Marshall base elements. For switching 24 V DC loads up to max. 3 A. Integrated fuse and fuse failure indicator. Normally open or normally closed contact can be used.
