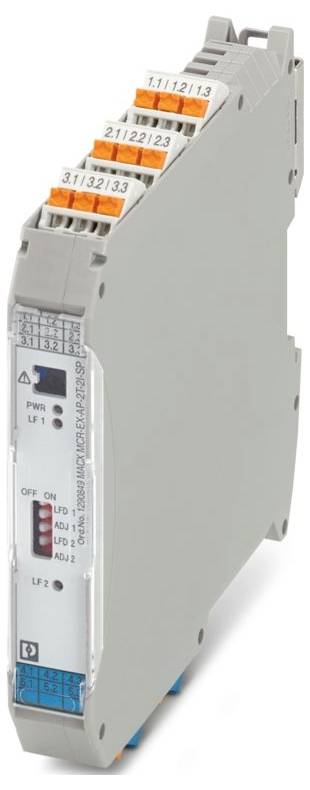

Phoenix Contact MACX MCR-EX-AP-2T-2I-SP Temperature Transducers 1290849
EAN:
Part number:
Item no:
Type
MACX MCR-EX-AP-2T-2I-SP
Supply voltage
24 V DC
Dim
(L x W x H) 113.7 x 17.5 x 107.8 mm
Connection
Push-in-connection;4-pin socket connector
Manufacturer part #
1290849
Datasheet (PDF)
Technical specifications
- Product family: MACX Analog
- Connection type: 4-pole socket
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 17.5 mm
- Height: 1.8" (107.8 mm)
- Depth: 113.7 mm
- Flammability class according to UL 94: V0
- Material housing PA 6.6
- Ambient conditions: Environmental conditions
- Protection class IP20 (terminals);IP30 (housing)
- Ambient temperature (operation): -20 °C ... 70 °C (single unit: Any mounting position);-20 °C ... 40 °C (group mounting: Vertical mounting rail without recirculation);-20 °C ... 60 °C (group mounting: Vertical mounting rail with recirculating air);-20 °C ... 50 °C (group mounting: Horizontal mounting rail without recirculating air);-20 °C ... 70 °C (group mounting: Horizontal mounting rail with recirculation)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: IEC/EN 60079-11
- Note: Note on the application of all device functions and diagnostics
- NS 35/15, NS 35/7.5 mounting type
- Permissible humidity (operating): ≤ 95% (no condensation)
- Stripped length: 8 mm
- Mounting position: Vertical, horizontal
- Note for operation: Setting 2-wire balance via DIP switch ADJ
- Max. Inner inductance Li: Negligible
- ATEX
- IECEx: IECEx
- Marking: [Ex ia Ga] IIC;[Ex ia Da] IIIC;Ex na NC [ia Ga] IIC T4 GC;[Ex ia Ma] I.
- Power loss ≤ 1.9 W
- Supply voltage range: 18 V ... 31.2 V
- Connection technology: 3-conductor
- Note on the application: The input variables can be set using the parameter assignment software IPac Wizard or DIP switch.
- Electromagnetic compatibility: Tested according to the following standards and regulations: EN 61326-1 Industrial use, NAMUR NE 21
- Switching voltage maximum 30 V
- Status display: Green LED (supply voltage);red LED (line fault)
- Naming: Configuration interface
- Galvanic isolation between input and output: Yes
- Supply: Supply
- Number of channels: 2
- Reverse polarity protection: Yes
- Rated insulation voltage 375 VPP
- Test voltage 350 V (50 Hz, 60 s)
- Safety specifications: Safety specifications
- Max. Output voltage Uo 6.5 V
- Max. Output current IO 19.7 mA
- Max. Output power Po: 32 mW (linear characteristic)
- Safety technical maximum voltage At 253 V AC
- Functionality: Functionality
- Rated supply voltage 24 VDC
- Galvanic isolation 5-way
- Typical temperature coefficient: ≤ 0.1% (10 K)
- Design RS-232-C
- Power consumption: ≤ 1.9 W
- Output signal current: 0 mA ... 20 mA (configurable);4 mA ... 20 mA (configurable);0 mA ... 21 mA (functional range)
- NS 35/7.5 depth: 114.5 mm (snapped onto DIN rail NS 35/7.5 in accordance with EN 60715)
- Configuration: Software
- Input description: Potentiometer
- Switching current maximum 100 mA
- Ex-Installation (EPL): GC
- Galvanic isolation Input / Output IEC / EN 60079-11: Galvanic isolation Input / Output IEC / EN 60079-11
- Ex i circuits (EPL): Ga;Da;Ma
- Max. Inner capacity CI: Negligible
- Max. Permissible total line resistance: ≤ 1000 Ω (per lead)
- Measuring: Measuring
- Galvanic isolation Input/supply IEC/EN 60079-11: Galvanic isolation Input/supply IEC/EN 60079-11
- Galvanic isolation Input / fault signal output IEC / EN 60079-11: Galvanic isolation input / fault signal output IEC / EN 60079-11
- Galvanic isolation Input/configuration interface IEC/EN 60079-11: Galvanic isolation Input/configuration interface IEC/EN 60079-11
- Galvanic isolation output 1 / output 2: Galvanic isolation output 1 / output 2
- Galvanic isolation output/supply: Galvanic isolation output/supply
- Galvanic isolation output/configuration interface: Galvanic isolation output/configuration interface
- Galvanic isolation output/supply/error message output: Galvanic isolation output/supply/error message output
- Suitable sensor types (RTD): Pt 100, Pt 250, Pt 500 , Pt 1000, Pt 2000, Ni 100, Ni 500, Ni 1000, M50, M53, M100
- Linear resistance range: 50 Ω ... 500 Ω;0.5 kΩ ... 5 kΩ;1 kΩ ... 10 kΩ;10 kΩ ... 100 kΩ (with parallel 10 kΩ shunt, no wire break monitoring)
- Reporting: Error message output: Signaling: Error message output
- IIA (single circuit): Max. outer inductance Lo / max. outer capacitance Co: 700 mH / 1000 µF
- IIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 90 mH / 25 µF
- I (single circuit): Max. external inductance Lo / max. outer capacitance Co: 700 mH / 1000 µF
- Temperature measuring range: -200 °C ... 1800 °C (range depends on sensor type)
- Measurement range Temperature: ≥ 36 K (range depends on sensor type)
- SUITABLE SENSOR TYPES (TC): B, E, J, K, N, R, S, T, L, U XK
- Signal: Current: Signal: Current
- Burden: 0 Ω ... 600 Ω (per channel)
- IIB (single circuit): Max. outer inductance Lo / max. outer capacitance Co: 330 mH / 570 µF
- Ipac Wizard software 9199
- Type
MACX MCR-EX-AP-2T-2I-SP
- Supply voltage
24 V DC
- Dim
(L x W x H) 113.7 x 17.5 x 107.8 mm
- Connection
Push-in-connection;4-pin socket connector
- Manufacturer part #
1290849
- Width
17.5 mm
- Height
107.8 mm
- Length
113.7 mm
- Weight
0.1331 kg
- UKCA
yes
- Product type
Temperature transducer
Documents & Downloads
Datasheet
Datasheet 3582758 Phoenix Contact MACX MCR-EX-AP-2T-2I-SP Temperature Transducers 1290849
User & Safety Instructions
User & Safety Instructions 3582758 Phoenix Contact MACX MCR-EX-AP-2T-2I-SP Temperature Transducers 1290849
Description
Ex i temperature transmitter, Ex i input signals from resistance thermometers in 2-, 3- or 4-wire technology, thermocouples and mV sources are in active 0 mA / 4 mA ... 20 mA non Ex i signals converted. Number of channels: 2, standard configuration, 5-way separation, push-in connection
