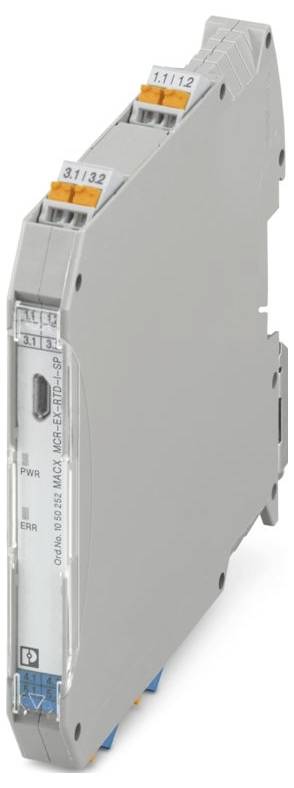

Phoenix Contact MACX MCR-EX-RTD-I-SP Temperature Transducers 1050252
EAN:
Part number:
Item no:
Type
MACX MCR-EX-RTD-I-SP
Supply voltage
24 V DC
Dim
(L x W x H) 113.7 x 12.5 x 107.9 mm
Connection
Push-in connector
Manufacturer part #
1050252
Datasheet (PDF)
Technical specifications
- Product family: MACX Analog
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14;24 ... 22 (TWIN cable end sleeve without plastic sleeve);20 ... 16 (TWIN-END SLEEVES with plastic cover)
- Width 12.5 mm
- Height: 107.9 mm
- Depth: 113.7 mm
- Colour: Grey (RAL 7042)
- Material housing PA 6.6-FR
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 49 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m (Technical data refer to altitude ≤2000 m above sea level For altitude >2000 m above NN see data sheet.)
- Standards/regulations EN 61000-4-6
- Note: Small deviations may occur during interference.
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Stripped length: 10 mm
- ATEX
- IECEx: IECEx
- Identification: 2Ex ec ic [ia Ga] IIC T4 GC
- UL, USA / Canada: UL, USA / Canada
- Power loss ≤ 0.76 W
- Supply voltage range: 19.2 V DC ... 30 V DC
- CE CE
- Certificate: BY/112 02.01 TP012 103.01 00082
- Signal
- Electromagnetic compatibility: Conformity to EMC directive
- Interference radiation: Interference radiation
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Ship building approval: Ship building approval
- INMETRO: INMETRO
- Immunity speed EN 61000-6-2
- Status display: Green LED (supply voltage);red LED , flashing 2.8 Hz (line, sensor error at input or output, ERR);red LED, flashing 1.4 Hz (simulation mode, ERR);red LED, permanently on (module fault, ERR)
- Designation: Conducted interference variables
- Galvanic isolation between input and output: Yes
- Application: Temperature
- Supply: Supply
- Number of channels: 1
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Insulation: Secure separation
- Flammability class to UL 94 (housing): V0 (housing)
- Shipbuilding data: Shipbuilding data
- Temperature B
- Humidity b
- Vibration A
- EMC B
- Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
- Rated insulation voltage 60 Veff (IEC/EN 60079-11)
- Test voltage: 1.75 kV
- Conductor cross-section flexible (2 conductors of the same cross-section): 0.25 mm² ... 0.34 mm² (TWIN wire-end sleeve without plastic sleeve);0.5 mm² ... 1.5 mm² (TWIN-end sleeve with plastic sleeve)
- Max. Output voltage Uo 6 V
- Max. Output current IO: 16.6 mA (RTD in 4 wire technology);13 mA (RTD in 3 wire technology);7.1 mA (RTD in 2 wire technology);16.6 mA (2x RTD in 2 wire technology);13 mA (Potentiometer)
- Max. Output power Po: 25.2 mW (linear)
- Safety technology maximum voltage UM: 60 V AC / DC
- Burden/output load current output: ≤ 600 Ω
- Functionality: Functionality
- Number of outputs: 1
- Rated supply voltage: 24 V DC -20 % ... +25 %
- Galvanic isolation: Galvanic isolation
- Typical temperature coefficient: 0.01 %/K.
- Power consumption: ≤ 1 W
- Output signal current: 0 mA ... 20 mA;4 mA ... 20 mA (SIL)
- Output signal current maximum: ≥ 21 mA
- Typical deviation from measuring range end value: 1 %
- NS 35/7.5 depth: 114.5 mm (snapped onto DIN rail NS 35/7.5 in accordance with EN 60715)
- Configuration: Software
- Description of the input: Intrinsically safe
- Number of inputs: 1
- Ex-Installation (EPL): GC;Div. 2
- EAC ex: EAC ex
- Galvanic isolation Input / Output IEC / EN 60079-11: Galvanic isolation Input / Output IEC / EN 60079-11
- Ex i circuits (EPL): Ga;Da;Ma;Div. 1
- Max. Internal capacitance CI: 44 nF
- Safety integrity level (SIL, IEC 61508): Safety integrity level (SIL, IEC 61508)
- Galvanic isolation Input / Output / Supply IEC / EN 61010-1: Galvanic isolation Input / Output / Supply IEC / EN 61010-1
- Max. Permissible total line resistance: 50 Ω (per line)
- Measuring: Measuring
- Galvanic isolation Input/supply IEC/EN 60079-11: Galvanic isolation Input/supply IEC/EN 60079-11
- Suitable sensor types (RTD): Pt, Ni, Cu sensors: 2 -, 3 -, 4-wire
- Linear resistance range: 0 Ω ... 50 kΩ
- Sensor feed current: 10 µA ... 210 µA (up to 2x 210 µA with 3-conductors)
- IIB/IIIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 460 mH / 1000 µF
- IIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 40 µF
- IIC (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 555 nF
- Temperature measuring range: -200 °C ... 850 °C (range depends on sensor type)
- Measuring range temperature: ≥ 50 K
- Signal: Current: Signal: Current
- Step response (0-99%): ≤ 1.7 s
- Systematic Capability: Systematic Capability
- Transmission error typical: 0.1 % (e.g. for Pt 100, span 300 K, 4 ... 20 mA)
- Configurable/Programmable: Yes
- Output ripple (current) < 15 µASS;< 10 µArms
- Behaviour in case of sensor error: Freely definable
- Technical data: Terminals: 4.1, 4.2, 5.1, 5.2: Technical data: Terminals: 4.1, 4.2, 5.1, 5.2
- IIA/I (single circuit): Max. external inductance Lo / max. external capacitance Co: 850 mH / 1000 µF
- IIB/IIA (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 950 nF
- IIIC/I (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 950 nF
- Altitude range (≤ 2000 m): Height usage range (≤ 2000 m)
- Altitude range (≤ 3000 m): Height usage range (≤ 3000 m)
- Height range: > 4000 m ... 5000 m
- Altitude range (≤ 4000 m): Height usage range (≤ 4000 m)
- Altitude range (≤ 5000 m): Height usage range (≤ 5000 m)
- Resistance range Potentiometer: 0 Ω ... 50 kΩ
- EAC ex: EAC ex
- Type
MACX MCR-EX-RTD-I-SP
- Supply voltage
24 V DC
- Dim
(L x W x H) 113.7 x 12.5 x 107.9 mm
- Connection
Push-in connector
- Manufacturer part #
1050252
- Width
12.5 mm
- Height
107.9 mm
- Length
113.7 mm
- Max. ambient temperature
49 °C
- Min. ambient temperature
-40 °C
- Weight
0.15 kg
- UKCA
yes
- Product type
Temperature transducer
Documents & Downloads
Datasheet
Datasheet 3562261 Phoenix Contact MACX MCR-EX-RTD-I-SP Temperature Transducers 1050252
User & Safety Instructions
User & Safety Instructions 3562261 Phoenix Contact MACX MCR-EX-RTD-I-SP Temperature Transducers 1050252
Description
Ex i temperature transmitter: Converts signals from resistance thermometers installed in the hazardous area and transmits a 0/4-20 mA signal to a load in the safe range. Freely programmable, 3-way isolation, SIL, push-in connection, standard configuration.
