Buy Phoenix Contact MACX MCR-EX-T-UIREL-UP-SP Temperature Transducers 2924799

Electrical device with various plug connections and labels. Triangular symbols and numbers are visible.

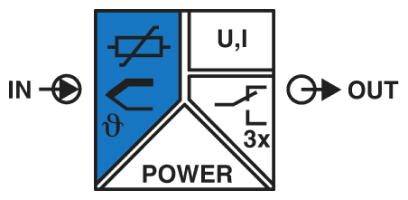

'Electronic Module Diagram: Arrow points from IN to OUT. Internal symbols: Resistor, Voltage/Current U,I, Loop, Switch with 3x and POWER.'

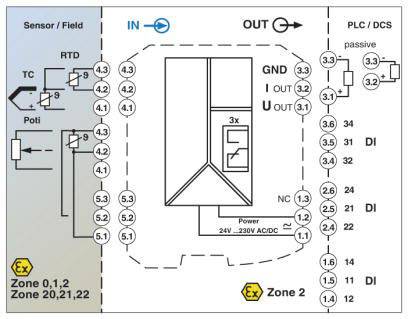

'Diagram of a Control System: Connections between Sensors, Inputs/Outputs and Zones 0, 1, 2. PLC/DCS Passive Units.'

'Circuit diagram of an electrical safety circuit: sensors, inputs and outputs, power supply. Zones are explosion-protected (Ex). Main contacts GND, I OUT, U OUT.'

1/4

Type

MACX MCR-EX-T-UIREL-UP-SP

Supply voltage

24 V - 230 V

Current consumption

100 mA

Output signal

4 mA - 20 mA

Temperature range

-40 °C - +85 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protection class: IP20
Suitable sensor types (RTD): PT, Ni, Cu sensors: 2, 3, 4 conductors
SUITABLE SENSOR TYPES (TC): B, E, J, K, N, R, S, T, L, U, CA, DA, A1G, A2G, A3G, MG, LG
Temperature measuring range: -250 °C - +2500 °C (range depends on sensor type)
Input signal range 0 Ω - 50 kΩ
Power consumption: 2.4 W
Wire stripping length: 8 mm
Conductor cross-section 0.2 mm² - 1.5 mm²
Wire cross-section AWG: 24 - 16

Type: MACX MCR-EX-T-UIREL-UP-SP

Supply voltage: 24 V - 230 V

Current consumption: 100 mA

Output signal: 4 mA - 20 mA

Temperature range: -40 °C - +85 °C

Load: 600 ohm

Description: Temperature Transducers

Dim: (L x W x H) 113.5 x 35.2 x 117.7 mm

Connection: Push-in connector

Operating temperature: -250 °C (min)

Min. operating temperature: -250 °C

Input resistance: 0 Ω - 50 kΩ

Manufacturer part #: 2924799

Width: 35.2 mm

Height: 117.7 mm

Length: 113.5 mm

Max. ambient temperature: +65 °C

Min. ambient temperature: -20 °C

UKCA: yes

Product type: Temperature transducer

Documents & Downloads

Datasheet

Datasheet 2225812 Phoenix Contact MACX MCR-EX-T-UIREL-UP-SP Temperature Transducers 2924799

User & Safety Instructions

User & Safety Instructions 2225812 Phoenix Contact MACX MCR-EX-T-UIREL-UP-SP Temperature Transducers 2924799

Description

Programming during operation, with the Ex measuring circuit connected and also without voltage via programming adapter IFS-USB-PROG ADAPTER. Input for resistance thermometers, thermocouples, resistance encoders, potentiometers and mV sources, [Ex ia] IIC. Cold junction compensation with separate plug.
