Name: Phoenix Contact MACX MCR-EX-TC-I Temperature Transducers 1050233
Brand: Phoenix Contact
SKU: 3562282

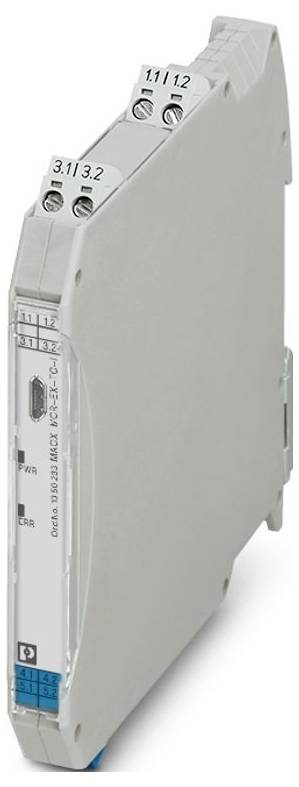

A gray electrical module with terminal connections, labeled '3.1', '3.2', '11', '12' on top, used for mounting on a DIN rail in panels.

Image similar

Type

MACX MCR-EX-TC-I

Supply voltage

24 V DC

Dim

(Ø x H) 2 mm x 112.5 mm

Connection

Screw connector

Manufacturer part #

1050233

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: MACX Analog
Connection type: screw terminals.
M3 screw thread
Tightening torque: 0.5 Nm ... 0.6 Nm
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
Wire cross-section AWG: 24 ... 14
Width 12.5 mm
Height: 112.5 mm
Depth: 113.7 mm
Colour: Grey (RAL 7042)
Material housing PA 6.6-FR
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 49 °C
Ambient temperature (storage/transport): -40 °C ... 80 °C
Altitude: ≤ 2000 m (Technical data refer to altitude ≤2000 m above sea level For altitude >2000 m above NN see data sheet.)
Standards/regulations EN 61000-4-6
Note: Small deviations may occur during interference.
Mounting type: Rail mounting
Overvoltage category II
Pollution level: 2
Permissible air humidity (operation): 5 % ... 95% (no condensation)
Stripped length: 7 mm
ATEX
IECEx: IECEx
Identification:  2Ex ec ic [ia Ga] IIC T4 GC
UL, USA / Canada: UL, USA / Canada
Power loss ≤ 0.76 W
Supply voltage range: 19.2 V DC ... 30 V DC
CE CE
Certificate: BY/112 02.01 TP012 103.01 00082
Signal
Electromagnetic compatibility: Conformity to EMC directive
Interference radiation: Interference radiation
Electromagnetic HF-field: Electromagnetic HF-field
Fast Transients (Burst): Fast Transients (Burst)
Conducted interference: Conducted interference
Ship building approval: Ship building approval
INMETRO: INMETRO
Immunity speed EN 61000-6-2
Status display: Green LED (supply voltage);red LED , flashing 2.8 Hz (line, sensor error at input or output, ERR);red LED, flashing 1.4 Hz (simulation mode, ERR);red LED, permanently on (module fault, ERR)
Designation: Conducted interference variables
Galvanic isolation between input and output: Yes
Application: Temperature
Supply: Supply
Maximum power consumption < 40 mA (24 V DC)
Number of channels: 1
Usage restriction: Use restriction
EMC note: EMC: Class A product, see manufacturer's declaration in the download area
Insulation: Secure separation
Flammability class to UL 94 (housing): V0 (housing)
Shipbuilding data: Shipbuilding data
Temperature B
Humidity b
Vibration A
EMC B
Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
Rated insulation voltage 60 Veff (IEC/EN 60079-11)
Test voltage: 1.75 kV
Max. Output voltage Uo 6 V
Max. Output current IO: 4.3 mA (mV);7.1 mA (TC with internal cold junction);16.8 mA (TC connected to external cold junction, TC and cold junction)
Max. Output power Po: 25.2 mW (linear)
Safety technology maximum voltage UM: 60 V AC / DC
Burden/output load current output: ≤ 600 Ω
Functionality: Functionality
Number of outputs: 1
Rated supply voltage: 24 V DC -20 % ... +25 %
Galvanic isolation: Galvanic isolation
Typical temperature coefficient: 0.01 %/K.
Power consumption: ≤ 1 W
Input signal: Temperature;voltage
Output signal current: 0 mA ... 20 mA;4 mA ... 20 mA (SIL)
Typical deviation from measuring range end value: 1 %
NS 35/7.5 depth: 114.5 mm (snapped onto DIN rail NS 35/7.5 in accordance with EN 60715)
Configuration: Software
Description of the input: Intrinsically safe
Number of inputs: 1
Ex-Installation (EPL): GC;Div. 2
EAC ex: EAC ex
Galvanic isolation Input / Output IEC / EN 60079-11: Galvanic isolation Input / Output IEC / EN 60079-11
Ex i circuits (EPL): Ga;Da;Ma;Div. 1
Max. Internal capacitance CI: 44 nF
Safety integrity level (SIL, IEC 61508): Safety integrity level (SIL, IEC 61508)
Galvanic isolation Input / Output / Supply IEC / EN 61010-1: Galvanic isolation Input / Output / Supply IEC / EN 61010-1
Measuring: Measuring
Galvanic isolation Input/supply IEC/EN 60079-11: Galvanic isolation Input/supply IEC/EN 60079-11
IIB/IIIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 460 mH / 1000 µF
IIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 40 µF
IIC (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 555 nF
Temperature measuring range: -250 °C ... 2500 °C (range depends on sensor type)
Measuring range temperature: Min. 50 K for thermocouples, 10 % of the nominal range for mV sources
SUITABLE SENSOR TYPES (TC): B, E, J, K, N, R, S, T, L, U C, D, A-1, A-2, A-3, m, LR
Signal: Current: Signal: Current
Step response (0-99%): ≤ 1.7 s
Test socket: Test jack
Diameter max. 2 mm
Systematic Capability: Systematic Capability
Cold junction error maximum: ± 2 K.
Typical transmission error: 0.1% (complete transmission error determination see data sheet)
Temperature measuring range: Thermocouple type B: 500 °C ... 1820 °C
Temperature measuring range: Thermocouple type E: -230 °C ... 1000 °C
Temperature measuring range: Thermocouple type J: -210 °C ... 1200 °C
Temperature measuring range: Thermocouple type K: -250 °C ... 1372 °C
Temperature measuring range: Thermocouple type N: -200 °C ... 1300 °C
Temperature measuring range: Thermocouple type R: -50 °C ... 1768 °C
Temperature measuring range: Thermocouple type S: -50 °C ... 1768 °C
Temperature measuring range: Thermocouple type T: -200 °C ... 400 °C
Temperature measuring range: Thermocouple type L: -200 °C ... 900 °C
Temperature measuring range: Thermocouple type U: -200 °C ... 600 °C
Temperature measuring range: Thermocouple type C: 0 °C ... 2315 °C
Temperature measuring range: Thermocouple type D: 0 °C ... 2315 °C
Temperature measuring range: Thermocouple type A1 GOST: 0 °C ... 2500 °C
Temperature measuring range: Thermocouple type A2 GOST: 0 °C ... 1800 °C
Temperature measuring range: Thermocouple type A3 GOST: 0 °C ... 1800 °C
Temperature measuring range: Thermocouple type M GOST: -200 °C ... 100 °C
Temperature measuring range: Thermocouple type L GOST: -200 °C ... 800 °C
MV signal range linear: -1000 mV ... 1000 mV
Configurable/Programmable: Yes
Output ripple (current) < 15 µASS;< 10 µArms
Behaviour in case of sensor error: Freely definable
Technical data: Terminals: 4.1, 4.2, 5.1, 5.2: Technical data: Terminals: 4.1, 4.2, 5.1, 5.2
IIA/I (single circuit): Max. external inductance Lo / max. external capacitance Co: 850 mH / 1000 µF
IIB/IIA (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 950 nF
IIIC/I (mixed circuit): Max. external inductance Lo / max. external capacitance Co: 100 mH / 950 nF
Altitude range (≤ 2000 m): Height usage range (≤ 2000 m)
Altitude range (≤ 3000 m): Height usage range (≤ 3000 m)
Height range: > 4000 m ... 5000 m
Altitude range (≤ 4000 m): Height usage range (≤ 4000 m)
Altitude range (≤ 5000 m): Height usage range (≤ 5000 m)
EAC ex: EAC ex

Type: MACX MCR-EX-TC-I

Supply voltage: 24 V DC

Dim: (Ø x H) 2 mm x 112.5 mm

Connection: Screw connector

Manufacturer part #: 1050233

Width: 12.5 mm

Height: 112.5 mm

Length: 113.7 mm

(Ø): 2 mm

Max. ambient temperature: 49 °C

Min. ambient temperature: -40 °C

Weight: 0.15 kg

UKCA: yes

Product type: Temperature transducer

Documents & Downloads

Datasheet

Datasheet 3562282 Phoenix Contact MACX MCR-EX-TC-I Temperature Transducers 1050233

User & Safety Instructions

User & Safety Instructions 3562282 Phoenix Contact MACX MCR-EX-TC-I Temperature Transducers 1050233

Description

Ex i temperature transmitter: Converts signals from thermocouples and mV sources installed in the hazardous area and transmits a 0/4-20 mA signal to a load in the safe area. Fully programmable 3-way isolation, screw connection, SIL.
