Phoenix Contact MACX MCR-VAC-PT Voltage measuring transducer
EAN:
Part number:
Item no:
Operating voltage
19.2 V/DC - 30 V DC
Type
MACX MCR-VAC-PT
Connection
Push-in connector
Type
Voltage measuring transducer
Width
22.5 mm
Datasheet (PDF)
Technical specifications
- Height: 99 mm
- Depth: 114.5 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Max. Operating height: ≤ 2000 m.
- Protection class: IP20
- Max. Output voltage ≤ 11 V.
- Load/output load Voltage output>: 10 kΩ
- Max. Output current ≤ 22 mA
- Load/output load Current output< 500 Ω
- Connection type: Push-in spring connection
- Wire stripping length: 8 mm
- Conductor cross-section AWG: 24 ... 14
- Colour: grey
- All mounting positions permitted
- Mounting instructions: Can be aligned at a distance of 10 mm
- Pollution level: 2
- Pluggable: Yes
- Operating voltage
19.2 V/DC - 30 V DC
- Type
MACX MCR-VAC-PT
- Connection
Push-in connector
- Type
Voltage measuring transducer
- Width
22.5 mm
- Current consumption
45 mA
- Supply voltage
24 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225663 Phoenix Contact MACX MCR-VAC-PT Voltage measuring transducer
Datasheet 2225663 Phoenix Contact MACX MCR-VAC-PT Voltage measuring transducer
User & Safety Instructions
User & Safety Instructions 2225663 Phoenix Contact MACX MCR-VAC-PT Voltage measuring transducer

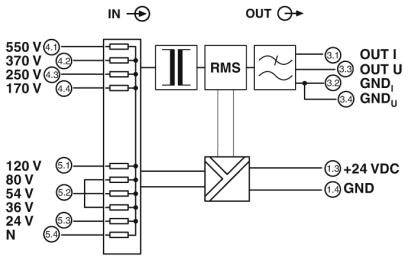

Description
Bidirectional output signals. 3-way isolation. ZERO/SPAN adjustment ± 20%. Tool-free parameterization of the measured values. Teach-in configuration of the measured value range.
