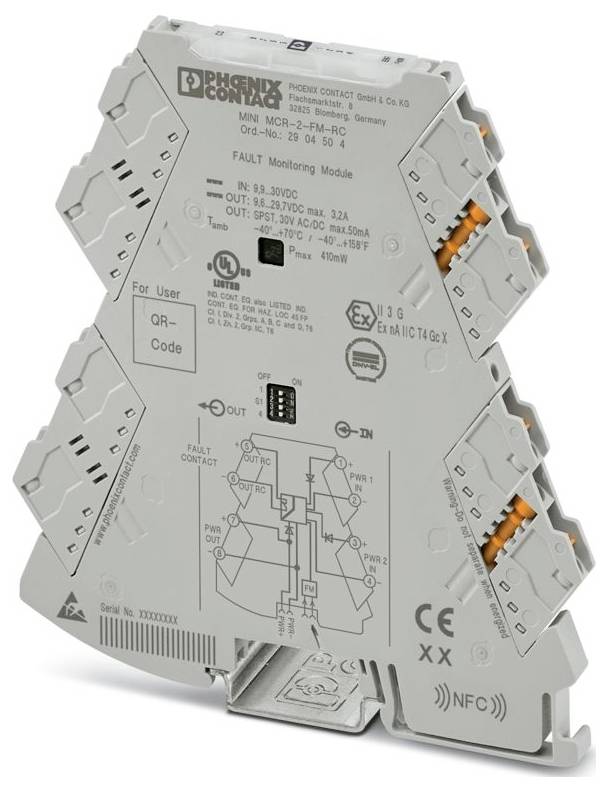

Phoenix Contact MINI MCR-2-FM-RC 2904504 Monitoring module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Monitoring module
Input signal (voltage) (max.)
30 V
Type
MINI MCR-2-FM-RC
Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- MINI Analog Pro product family
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm² (with wire-end sleeve);0.14 mm² ... 2.5 mm² (without ferrule)
- Wire cross-section AWG: 24 ... 12 (flexible)
- Width 6.2 mm
- Height: 109.81 mm
- Depth: 119.2 mm
- Colour: Grey (RAL 7042)
- Material: housing: PBT
- Ambient conditions: Environmental conditions
- Protection type IP20 (not rated by UL)
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: GB/T 3836.1;GB/T 3836.3
- Note: Small deviations may occur during interference.
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Stripped length: 10 mm
- All mounting positions permitted
- ATEX
- IECEx: IECEx
- Identification: 2Ex ec IIC T4 GC
- UL, USA / Canada: UL, USA / Canada
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2
- Supply voltage range: 9.6 V DC ... 30 V DC (to bridge the supply voltage the mounting rail bus connector (ME 6.2 TBUS-2 1.5/5-ST-3.81 GN, item no. 2869728) can be used, snap-on to 35 mm mounting rail according to EN 60715)
- CE CE
- Certificate: BY/112 02.01 TP012 103.01 00079
- Electromagnetic compatibility: Conformity to EMC directive
- Interference radiation: Interference radiation
- Discharge of static electricity: Discharge of static electricity
- Note: Protection against electrostatic discharge must be taken.
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Ship building approval: Ship building approval
- Immunity speed EN 61000-6-2
- Switching voltage maximum 30 V DC
- Status display: Green LED (supply voltage);yellow LED (switch output)
- Designation: Conducted interference variables
- Galvanic isolation between input and output: Yes
- Supply: Supply
- Surge current load (SURGE): Impulse current load (SURGE)
- Maximum power consumption < 16 mA (24 V DC)
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Insulation: Base insulation
- Shipbuilding data: Shipbuilding data
- Temperature B
- Humidity b
- Vibration A
- EMC A
- Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
- Rated insulation voltage 50 V AC / DC (effective)
- Testing voltage 1.5 kV AC (50 Hz, 60 s)
- Functionality: Functionality
- CCC / China-Ex: CCC / China-Ex
- GB standard GB standard
- Number of outputs: 1
- Galvanic isolation: Galvanic isolation
- Temperature coefficient maximum: < 0.01 %/K.
- Power consumption < 410 mW (24 V DC)
- Output signal current max. 3.2 A.
- DIP switch configuration
- Galvanic isolation Input / output IEC / EN 61010: Galvanic isolation Input / Output IEC / EN 61010
- Signal: Voltage: Signal: Voltage
- Description of the input: Voltage input for redundancy monitoring
- Number of inputs: 1
- Input signal voltage: 9.9 V DC ... 30 V DC
- Switching: Relays: Switching: Relays
- Maximum switching current 50 mA DC
- Output signal voltage: 9.6 V DC ... 29.7 V DC
- Ex-Installation (EPL): GC;Div. 2
- Error display: Red LED
- EAC ex: EAC ex
- EAC ex: EAC ex
- Type
MINI MCR-2-FM-RC
- Product type
Monitoring module
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
- Connection
Screws
- Output (voltage)
9.6 V DC ... 29.7 V DC
- Output (current)
3.2 A
- Input signal (voltage)
9.9 V DC ... 30 V DC
- Content
1 pc(s)
- Configuration
DIP switch
- Width
6.2 mm
- Height
109.81 mm
- Length
119.2 mm
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Supply voltage (num.)
30 V DC
- Operating voltage U(B)
9.6 V DC ... 30 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579741 Phoenix Contact MINI MCR-2-FM-RC 2904504 Monitoring module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579741 Phoenix Contact MINI MCR-2-FM-RC 2904504 Monitoring module 1 pc(s)
Description
Fault monitoring module with plug-in connection technology for evaluating and reporting the group faults of the FM system and for monitoring the supply voltages. Error message via NC contact. Screw connection technology, standard configuration
