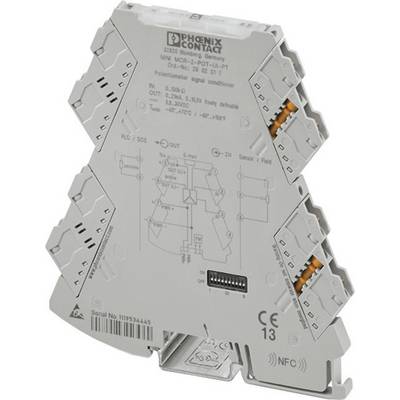

Phoenix Contact MINI MCR-2-POT-UI 2902016 1 pc(s)
EAN:
Part number:
Item no:
Type
MINI MCR-2-POT-UI
Dim
(L x W) 120.5 mm x 6.2 mm
Connection
Jack connector
Output (voltage)
lineares und frei einstellbares Spannungssignal
Output (current)
lineares und frei einstellbares Stromsignal
Datasheet (PDF)
Number
Total (€ 205.87 / piece)
€ 247.90
-17 %
€ 205.87
plus VAT.
14-day return policy included
Highlights & Details
Configurable potentiometer position transducer
Technical specifications
- Type
MINI MCR-2-POT-UI
- Dim
(L x W) 120.5 mm x 6.2 mm
- Connection
Jack connector
- Output (voltage)
lineares und frei einstellbares Spannungssignal
- Output (current)
lineares und frei einstellbares Stromsignal
- Load
Output load voltage output: ≥10 kΩ output load current output: ≤ 600 Ω (with 20 mA)
- Content
1 pc(s)
- Configuration
DIP switch
- Width
6.2 mm
- Length
120.5 mm
- Current consumption
33 mA at 24 V/DC)
68 mA at 12 V/DC)
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
IP20
- Connection
Screws
- Output signal
DIP switch: 1-5 V, 10-0 V, 0-5 V, 0-10V, 0-20mA, 4-20mA,20-0mA, 20-4 mA· Software: 0-10.5 V, 0-21 mA
- Setting
DIP switches or software
- Supply voltage
9,6 - 30 V DC
- Input resistance
100 Ω - 100 kΩ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1199201 Phoenix Contact MINI MCR-2-POT-UI 2902016 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1199201 Phoenix Contact MINI MCR-2-POT-UI 2902016 1 pc(s)
Description
Configurable 3-way separate potentiometer transducer with pluggable connection technology. The measurements in a linear and freely adjustable current or voltage signal is converted. You can configure the device via DIP switch or with extended functions via the S-Port using the standard software analog conf, via FDT/DTM or without any additional accessories via the MINI Analog Pro
Smartphone app. If a vollausnutzung of the potentiometer range is not possible, you can use the upper and lower potentiometer value in the software itself. The device supports fault monitoring.
This text is machine translated.
Smartphone app. If a vollausnutzung of the potentiometer range is not possible, you can use the upper and lower potentiometer value in the software itself. The device supports fault monitoring.
