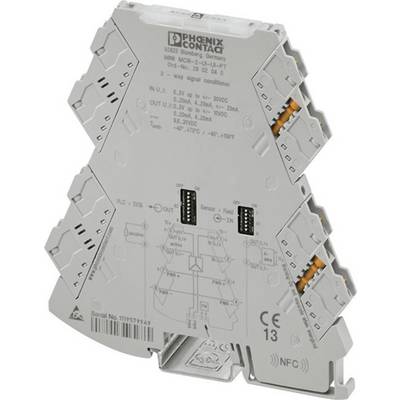

Phoenix Contact MINI MCR-2-UI-UI 2902037 Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€
Only 1 Piece(s) available
Highlights & Details
Configurable 3-way- isolation amplifier
Technical specifications
- Transmission errors: ≤ 0.1 % (of final value).
- Dim
(L x W) 120.5 mm x 6.2 mm
- Load
≥10 kΩ /< 600 Ω (with 20 mA)
- Content
1 pc(s)
- Length
120.5 mm
- Width
6.2 mm
IP20
- Type
MINI MCR-2-UI-UI
- Current consumption
25 mA (power output with 24 V/DC incl. load) · 54 mA (power output with 24 V/DC incl. load)
- Input current (max.)
24 mA
- Connection
Screws
- Output signal
0V - 5 V
1 V - 5 V
-5 V~5 V
0V - 10 V
2 V - 10 V
-10 V - 10 V
0 - 20
4 mA - 20 mA
- Input signal
0V - 5 V
1 V - 5 V
-5 V~5 V
0V - 10 V
2 V - 10 V
-10 V - 10 V
0V - 20 V
4 V - 20 V
-20 V - 20 V
0V - 24 V
4.8 V - 24 V
24 V - 24 V
0V - 30 V
6 V - 30 V
-30 V - 30 V
0 - 20
4 - 20
-20 mA - 20 mA
- Setting
DIP Switches
- Supply voltage
9,6 - 30 V DC
- Input resistance
Voltage input:> 1000kΩ
Power input: 63 kΩ
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
- Product type
Isolation amplifier
Documents & Downloads
Datasheet
Datasheet 1199182 Phoenix Contact MINI MCR-2-UI-UI 2902037 Isolation amplifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1199182 Phoenix Contact MINI MCR-2-UI-UI 2902037 Isolation amplifier 1 pc(s)
Description
3-way isolation amplifier with pluggable connection technology and calibrated measurement range switching for galvanic isolation of uni and bipolar analog signals. Via DIP-switch configurable input/output.
This text is machine translated.
This text is machine translated.
Hints
Standard configuration
