Buy Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

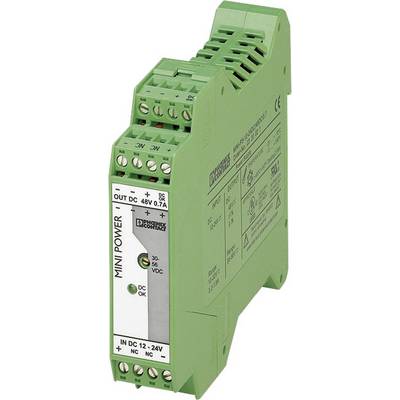

A green hat rail device 'MINI POWER', 48V-DC, 0.7A, with connection terminals and labelling.

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

Highlights & Details

Modular housing for single appearance in the MSR technology
56 V DC / 0.7 A
Input 1-phase
Input voltage range 12 - 24 V DC
Connection (components): Screw terminal

Technical specifications

Protection class IP20, protection class III

Nominal input voltage: 12 V/DC
24 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 12 V AC

Output voltage: 48 V DC

Input voltage: 12 - 24 V DC

Input voltage (max.): 24 V AC

Max. output current: 0.7 A

Output current (max.) - rounded: 700 mA

Phases: 1

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 22.5 x 99 x 107 mm

Weight: 0.2 kg

Output voltage (max.): 56 V DC

Output voltage (min.): 30 V DC

Manufacturer part #: 2320021

Content: 1 pc(s)

Width: 22.5 mm

Height: 99 mm

Type: MINI-PS-12-24DC/48DC/0.7

Depth: 107 mm

: 33,6 W

Connections: Plug-in screw connector

Output current (details): 0,7 A

: 22.5

: 99 mm

: 107 mm

: 99 mm

: FALSE

: DC

: Screw connection

: TRUE

: IP20

: Other

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

Item no:514793

This article

24 V AC

48 V DC

12 V/DC24 V/DC

1 x

700 mA

12 V AC

Phoenix Contact 2866336 Rail mounted PSU (DIN) 24 V DC 3.8 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:104116

264 V AC

24 V DC

115 V/AC230 V/AC90 - 350 V/DC

1 x

3.8 A

85 V AC

Phoenix Contact 2866446 Rail mounted PSU (DIN) 24 V DC 1.3 A 31.2 W No. of outputs:1 x Content 1 pc(s)

Item no:511654

264 V AC

24 V DC

115 V/AC230 V/AC90 - 350 V/DC

1 x

1.3 A

85 V AC

Phoenix Contact 2938837 Rail mounted PSU (DIN) 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:511680

264 V AC

24 V DC

115 V/AC230 V/AC90 - 350 V/DC

1 x

4 A

85 V AC

Phoenix Contact 2866284 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:511763

32 V DC

24 V DC

12 V/DC24 V/DC

1 x

1 A

10 V DC

Phoenix Contact MINI-PS-48-60DC/24DC/1 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:511775

75 V DC

24 V DC

36 V/DC48 V/DC72 V/DC

1 x

1 A

36 V DC

Phoenix Contact Quint 4-PS Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:511787

264 V AC

5 V DC

115 V/AC230 V/AC90 - 350 V/DC

1 x

3 A

85 V AC

Phoenix Contact 2938743 Rail mounted PSU (DIN) 15 V DC, -15 V DC 1 A 15 W No. of outputs:2 x Content 1 pc(s)

Item no:511799

264 V AC

15 V DC-15 V DC

± 15 V DC

115 V/AC230 V/AC90 - 350 V/DC

2 x

1 A

85 V AC

Phoenix Contact MINI-PS-100-240AC/10-15DC/8 Rail mounted PSU (DIN) 8 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:514790

264 V AC

10 - 15 V DC

115 V/AC230 V/AC90 - 350 V/DC

1 x

8 A

85 V AC

Phoenix Contact 2320018 Rail mounted PSU (DIN) 2 A No. of outputs:1 x Content 1 pc(s)

Item no:514792

24 V AC

5 - 15 V DC

12 V/DC24 V/DC

1 x

2 A

12 V AC

Documents & Downloads

Datasheet

Datasheet 514793 Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 514793 Phoenix Contact 2320021 Rail mounted PSU (DIN) 48 V DC 0.7 A No. of outputs:1 x Content 1 pc(s)

Description

The Phoenix Contact MINI-PS-12-24DC/48DC/0.7 power supply has an especially narrow width of just 22.5 mm. A reliable starting of heavy loads is ensured by a power reserve of up to 100% - the POWER BOOST The high operational reliability is also ensured in complex global networks MINI POWER also works in areas where static voltage dips are concerned, transient failures of the supply voltage or phase failure. Large capacitors ensure mains buffering of more than 20 ms under full load.

Features

Parallel switching option for creating redundant systems and increasing power
Series switching option
Overvoltage protection against internal overvoltages (limited to approx. 60 V/DC).
