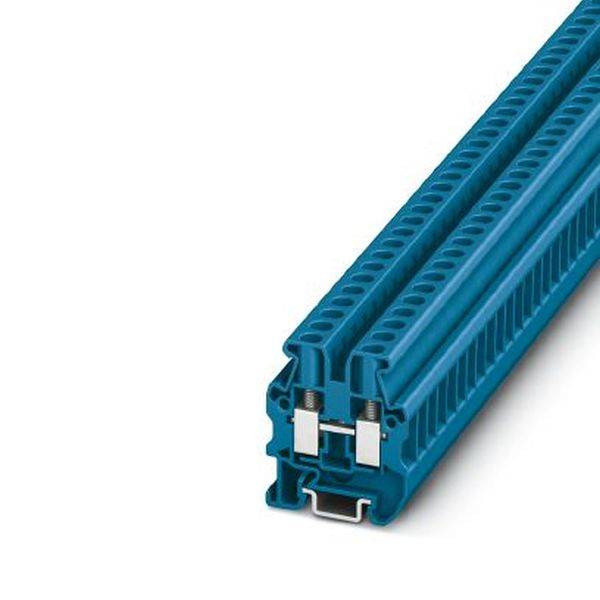

Phoenix Contact 3248036 Continuity 6.2 mm Screws Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.01 / piece)
€ 50.41
plus VAT.
14-day return policy included
Highlights & Details
Through terminal courage 4 BU
- MUT 4 BU
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3248036
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MUT 4 BU
- Dim
(L x W x H) 29.9 x 6.2 x 34 mm
- Width
6.2 mm
- Height
34 mm
- Length
29.9 mm
- Flammability rating
V0
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1563540 Phoenix Contact 3248036 Continuity 6.2 mm Screws Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1563540 Phoenix Contact 3248036 Continuity 6.2 mm Screws Blue 50 pc(s) Piece
