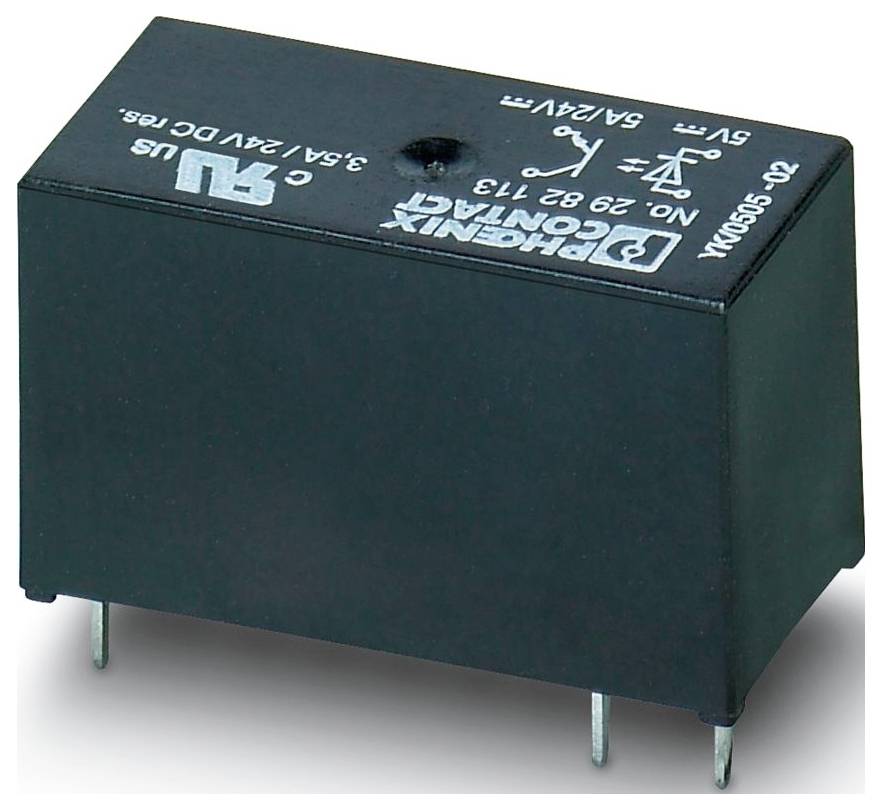

Phoenix Contact OPT- 5DC/ 24DC/ 5 SSR 1 maker 10 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Contact type
1 maker
Switching voltage (max.)
33 V DC
Type
OPT- 5DC/ 24DC/ 5
Min. pick-up voltage
4 V DC
Datasheet (PDF)
Technical specifications
- Width 12.7 mm
- Height: 29 mm
- Depth: 15.7 mm
- Colour: Black (RAL 9005)
- Ambient conditions: Environmental conditions
- Protection class RT III.
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Standards/regulations: IEC 60664;EN 50178
- Over voltage category III
- Pollution level: 2
- All mounting positions permitted
- Identification: ISA-S71.04. G3 Harsh Group; EN 60068-2-60
- Maximum power loss at rated conditions 0.05 W.
- Operating mode 100 % ED
- Input voltage range: 4 V DC ... 6 V DC
- Switch-on time typically 10 µs
- Mounting instructions: Can be aligned in series without spacing
- Protection: Reverse polarity protection | reverse polarity protection diode;voltage protection
- Pollutant test: Pollutant gas test
- Output voltage range: 3 V DC ... 33 V DC
- Inrush current max. 15 A (10 ms)
- Insulation properties: Standards / Regulations: Insulation properties: Standards / Regulations
- Insulation: Base insulation
- Data maintenance status: Data maintenance stand
- Date of last data maintenance: 05.09.2025
- Test voltage (input / output): 2.5 kV (50 Hz, 1 min., input/output)
- NOMINAL INPUT VOLTAGE UN 5 V DC
- Input voltage range referred to UN: 0.8 ... 1.2
- Switching threshold "0" signal relative to UN: 0.15
- Switching threshold "1" signal relative to UN: 0.5
- Typical input current at UN 9 mA
- Switch-off time typical: 400 µs
- Transmission frequency 300 Hz
- Contact version 1 closer
- Type of digital output: Electronic
- Continuous current limit: 5 A (see derating curve)
- Voltage drop at max. Continuous current limit ≤ 200 mV
- Output switching 2-conductor, ungrounded
- Flammability class to UL 94 (housing): V0 (housing)
- Standards/regulations: Standards/regulations
- Rated insulation voltage 100 V DC
- Rated output voltage 24 V DC
- Overvoltage limit > 33 V DC
- Product type
SSR
- Type
OPT- 5DC/ 24DC/ 5
- Min. pick-up voltage
4 V DC
- Max. pick-up voltage
6 V DC
- Response time
10 µs
- Fall time
400 µs
- Contact type
1 maker
- Switching voltage (max.)
33 V DC
- Features
+ reverse polarity protection
RT III
- Max. temperature
60 °C
- Min. temperature
-25 °C
- Depth
15.7 mm
- Length
15.7 mm
- Width
12.7 mm
- Height
29 mm
- Dim
(L x W x H) 15.7 x 12.7 x 29 mm
- Content
10 pc(s)
- Input voltage
4-6 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580387 Phoenix Contact OPT- 5DC/ 24DC/ 5 SSR 1 maker 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3580387 Phoenix Contact OPT- 5DC/ 24DC/ 5 SSR 1 maker 10 pc(s)
Description
Plug-in miniature solid state relay, powerful solid state relay, 1 NO contact, input 5 VDC, output 3-33 VDC/5 A.
