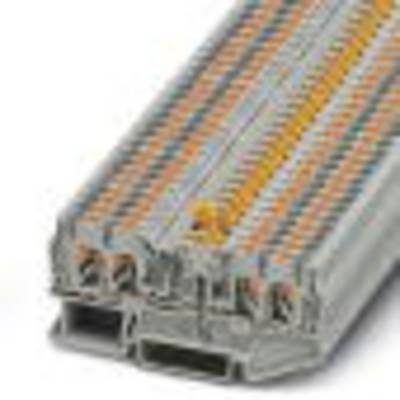

Phoenix Contact 3270085 Disconnect terminal 5.2 mm Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Disconnect terminal
Connection
Push-in connector
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
20 A
Number (Package size 50 pc(s))
Total (€ 2.86 / piece)
€ 142.85
plus VAT.
Technical specifications
- Product type
Disconnect terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
3270085
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTC 2,5-QUATTRO-MT
- Height
36.5 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831480 Phoenix Contact 3270085 Disconnect terminal 5.2 mm Push-in connector Grey 50 pc(s)
