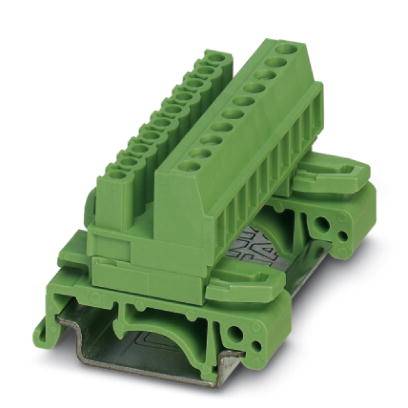

Image similar
Image similar
Phoenix Contact Pin housing cable UMSTBVK Total number of pins 5 Contact spacing: 5.08 mm 1833849 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing cable
Connector type
Plug, vertical mount
No. of rows
1
Series
UMSTBVK
CS
5.08 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.95 / piece)
€ 197.47
plus VAT.
14-day return policy included
Highlights & Details
Printed-circuit board connector UMSTBVK 2,5/ 5-ST-5,08
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 5
Technical specifications
- Product type
Pin housing cable
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
UMSTBVK
- CS
5.08 mm
- Pins per row
5
- Total number of pins
5
- Width
43.50 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- AWG max.
12
- AWG (min.)
24
- Stripping length (max.)
7.00 mm
- Dim
(L x W x H) 26.92 x 43.50 x 42.50 mm
- Connection
Screw terminal
Plug
- Manufacturer part #
1833849
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
42.50 mm
- Length
26.92 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- Type
UMSTBVK 2,5/ 5-ST-5,08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 567001 Phoenix Contact Pin housing cable UMSTBVK Total number of pins 5 Contact spacing: 5.08 mm 1833849 50 pc(s)
User & Safety Instructions
User & Safety Instructions 567001 Phoenix Contact Pin housing cable UMSTBVK Total number of pins 5 Contact spacing: 5.08 mm 1833849 50 pc(s)
Description
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 5, Pitch: 5.08 mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: DIN rail
