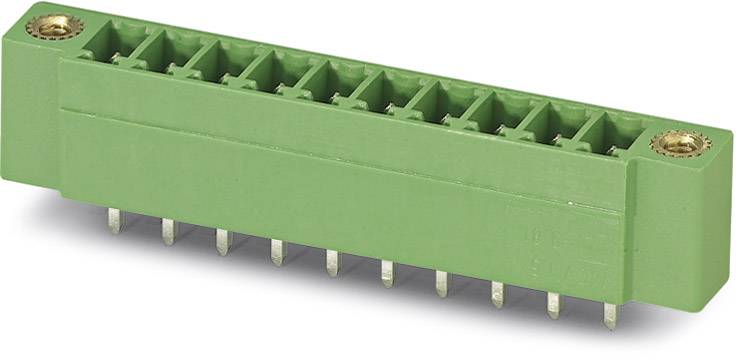

Image similar
Image similar
Phoenix Contact Pin housing PCB MCV Total number of pins 6 Contact spacing: 3.81 mm 1830635 100 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
28 Set(s)
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 1.97 / piece)
€
Highlights & Details
Base strip MCV 1,5/ 6-GF-3,81
- Content: 100 pc(s)
- No. of rows: 1
- Total number of pins: 6
Technical specifications
- Connector type
Plug, vertical mount
- Connector system
wire-to-board
- Series
MCV
- Features
closed
+ screw lock
- CS
3.81 mm
- Pins per row
6
- Total number of pins
6
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Content
100 pc(s)
- Dim
(L x W x H) 7.25 x 33.25 x 12.70 mm
- Factory colour
Green
- Height
12.70 mm
- Length
7.25 mm
- Width
33.25 mm
- Industrial packaging
Yes
- Connection
Print
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
1830635
- Type
MCV 1,5/ 6-GF-3,81
- Nominal voltage
160 V
- No. of rows
1
- Contact material
Tin plated
- Product type
Pin housing PCB
Documents & Downloads
Datasheet
Datasheet 717475 Phoenix Contact Pin housing PCB MCV Total number of pins 6 Contact spacing: 3.81 mm 1830635 100 pc(s)
User & Safety Instructions
User & Safety Instructions 717475 Phoenix Contact Pin housing PCB MCV Total number of pins 6 Contact spacing: 3.81 mm 1830635 100 pc(s)
Description
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 6, Pitch: 3.81 mm, Color: green, Contact surface: Tin, Assembly: Soldering
