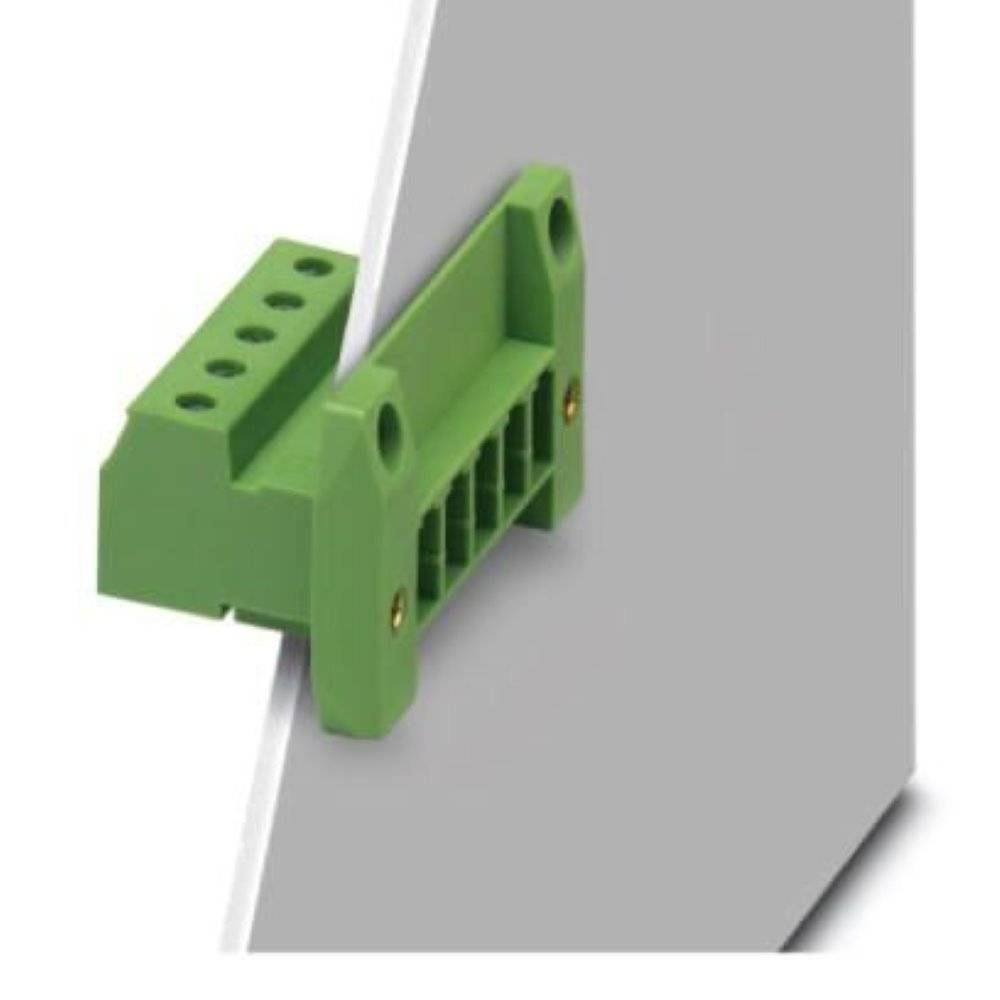

Image similar

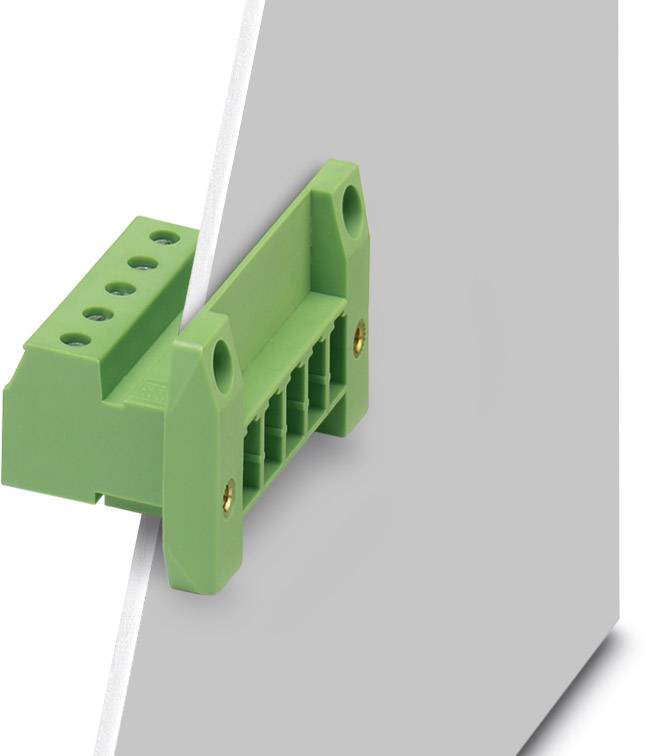

Image similar
Phoenix Contact Pin housing cable DFK-PC Total number of pins 3 Contact spacing: 7.62 mm 1840560 50 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 151.25 / piece)
€
Highlights & Details
Base strip DFK-PC 4/ 3-GF-7,62
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Connector type
Plug, mount
- Connector system
wire-to-board
- Series
DFK-PC
- Features
for enclosures
+ screw lock
- CS
7.62 mm
- Pins per row
3
- Total number of pins
3
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Content
50 pc(s)
- Dim
(L x W x H) 30.50 x 44.48 x 32.00 mm
- Factory colour
Green
- Height
32.00 mm
- Length
30.50 mm
- Width
44.48 mm
- Industrial packaging
Yes
- Connection
Screw terminal
Plug
- Connector contact surface
Tin plated
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1840560
- Type
DFK-PC 4/ 3-GF-7,62
- Nominal voltage
630 V
- AWG max.
10
- AWG (min.)
24
- max. cross section
4 mm²
- Stripping length (max.)
7.00 mm
- No. of rows
1
- Contact material
Tin plated
- Min. cross section
0.2 mm²
- Product type
Pin housing cable
Documents & Downloads
Datasheet
Datasheet 196434 Phoenix Contact Pin housing cable DFK-PC Total number of pins 3 Contact spacing: 7.62 mm 1840560 50 pc(s)
User & Safety Instructions
User & Safety Instructions 196434 Phoenix Contact Pin housing cable DFK-PC Total number of pins 3 Contact spacing: 7.62 mm 1840560 50 pc(s)
Description
Plug component, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 3, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: Direct mounting
