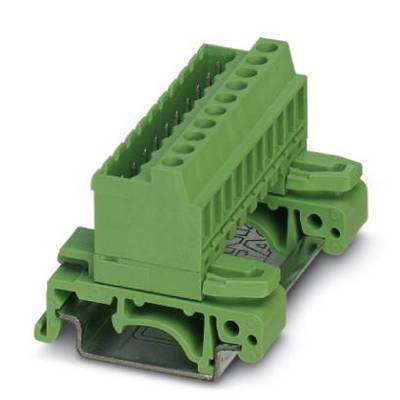

Phoenix Contact Pin housing cable UMSTBVK Total number of pins 15 Contact spacing: 5.08 mm 1788240 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing cable
Connector type
Plug, vertical mount
No. of rows
1
Series
UMSTBVK
CS
5.08 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 11.68 / piece)
€ 584.03
plus VAT.
Highlights & Details
Plug-in block UMSTBVK 2,5/15-G-5,08
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 15
Technical specifications
- Product type
Pin housing cable
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
UMSTBVK
- Features
+ TS35 mounting feet
+ screw lock
+ extractor sleeve
- CS
5.08 mm
- Pins per row
15
- Total number of pins
15
- Width
77.72 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- AWG max.
12
- AWG (min.)
24
- Stripping length (max.)
7.00 mm
- Dim
(L x W x H) 42.50 x 77.72 x 43.50 mm
- Connection
Screw terminal
Plug
- Manufacturer part #
1788240
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
43.50 mm
- Length
42.50 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- Type
UMSTBVK 2,5/15-G-5,08
Documents & Downloads
Datasheet
Datasheet 774524 Phoenix Contact Pin housing cable UMSTBVK Total number of pins 15 Contact spacing: 5.08 mm 1788240 50 pc(s)
User & Safety Instructions
User & Safety Instructions 774524 Phoenix Contact Pin housing cable UMSTBVK Total number of pins 15 Contact spacing: 5.08 mm 1788240 50 pc(s)
Description
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 15, Pitch: 5.08 mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: DIN rail
