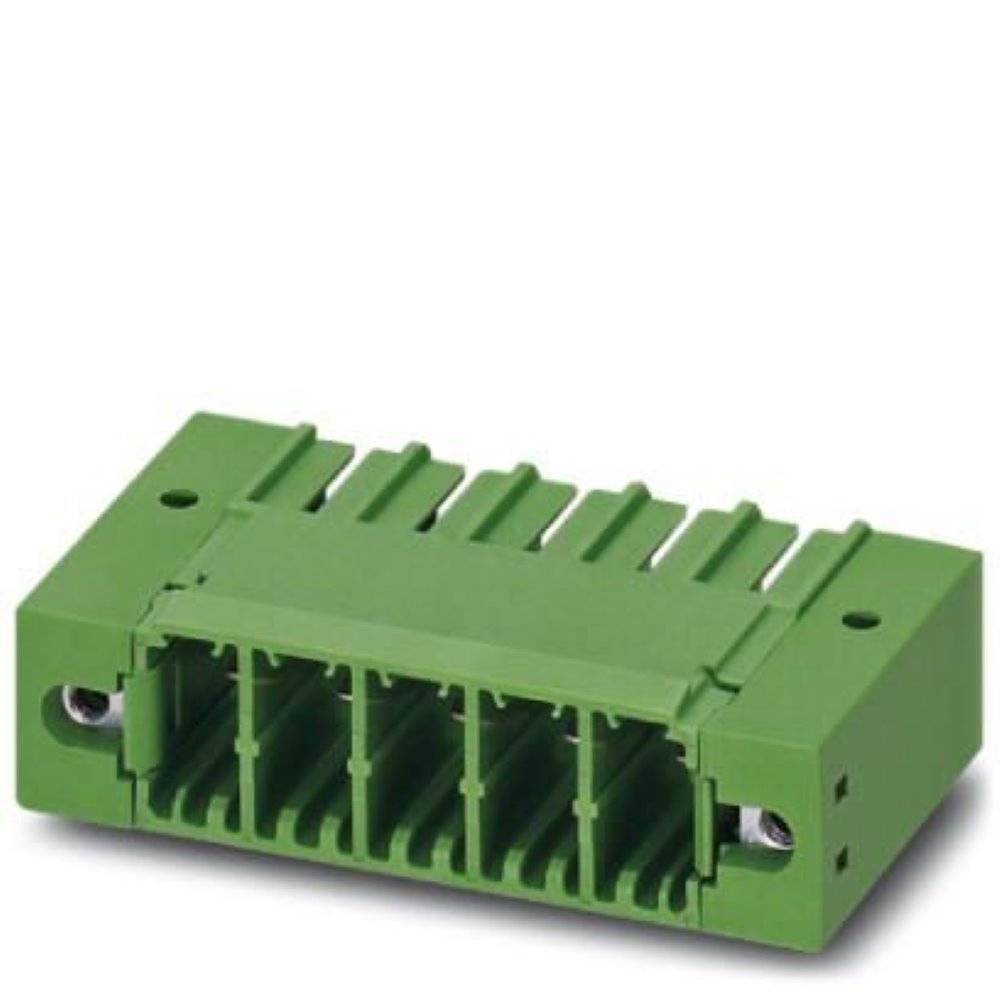

Image similar

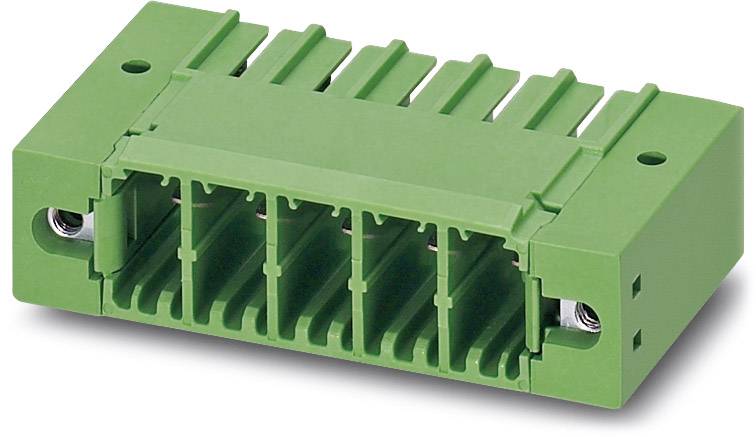

Image similar

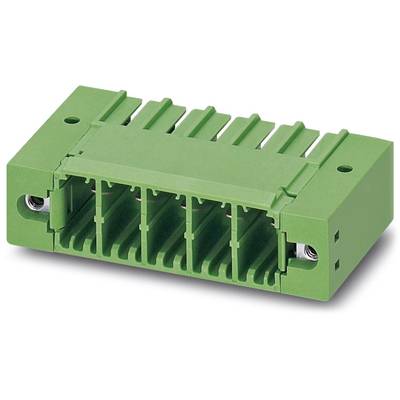

Phoenix Contact Pin housing PCB PC Total number of pins 2 Contact spacing: 7.62 mm 1720796 50 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.55 / piece)
€
Highlights & Details
Electronic housing PC 5/ 2-GF-7,62
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Connector type
Plug, horizontal mount
- Connector system
wire-to-board
- Series
PC
- CS
7.62 mm
- Pins per row
2
- Total number of pins
2
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
50 pc(s)
- Dim
(L x W x H) 19.29 x 31.34 x 29.25 mm
- Factory colour
Green
- Height
29.25 mm
- Length
19.29 mm
- Width
31.34 mm
- Industrial packaging
Yes
- Connection
Print
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
1720796
- Type
PC 5/ 2-GF-7,62
- Nominal voltage
630 V
- No. of rows
1
- Contact material
Tin plated
- Product type
Pin housing PCB
Documents & Downloads
Datasheet
Datasheet 196389 Phoenix Contact Pin housing PCB PC Total number of pins 2 Contact spacing: 7.62 mm 1720796 50 pc(s)
User & Safety Instructions
User & Safety Instructions 196389 Phoenix Contact Pin housing PCB PC Total number of pins 2 Contact spacing: 7.62 mm 1720796 50 pc(s)
Description
Header, Nominal current: 41 A, Rated voltage (III/2): 630 V, Number of positions: 2, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering
