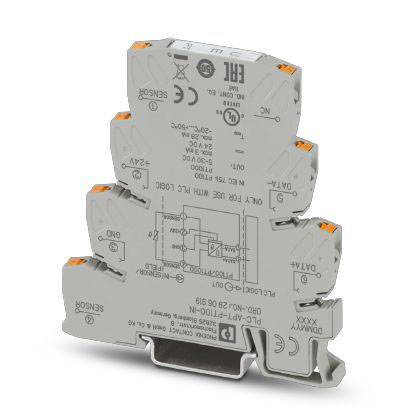

A grey electronic module with labels and circuit diagram on the front, yellow and orange connectors visible at the top.

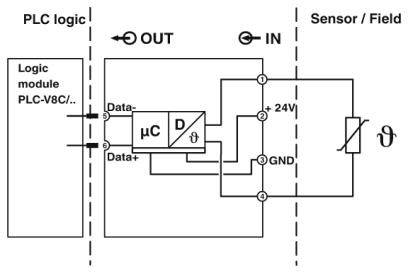

A diagram shows the wiring of a PLC-V8C logic module with a sensor. It has input and output connections and a voltage supply of 24V.

'The circuit diagram shows a logic circuit with a PLC-V8C logic module connected to sensors and a 24V electrical circuit.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

All mounting positions permitted
Mounting instructions: Can be aligned without distance
Wire stripping length: 8 mm
Number of ports: 4
Conductor cross-section rigid: 0.14 mm² ... 2.5 mm²
Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²
Conductor cross-section AWG: 26 ... 14
Rated insulation voltage 50 V.
Dimensioning surge voltage: 0.5 kV
Pollution level: 2
Over voltage category III

Type: PLC-APT-PT100-IN

No. of analogue inputs: 1

No. of inputs (max.): 1

No. of inputs: 1 x

Height: 80 mm

Length: 86 mm

Width: 6.2 mm

: IP20

Dim: (L x W x H) 86 x 6.2 x 80 mm

Connection method: 2-core

Connection: Push-in wire connector

Manufacturer part #: 2906919

Max. ambient temperature: +50 °C

Min. ambient temperature: -20 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225671 Phoenix Contact PLC-APT-PT100-IN 2906919

User & Safety Instructions

User & Safety Instructions 2225671 Phoenix Contact PLC-APT-PT100-IN 2906919

Description

PT 100/Pt 1000 Temperature measuring transducer for PLC logic logic modules (generation 2 only), single-channel, signal type (Pt 100, Pt 1000) configurable via DIP switch, push-in connection
