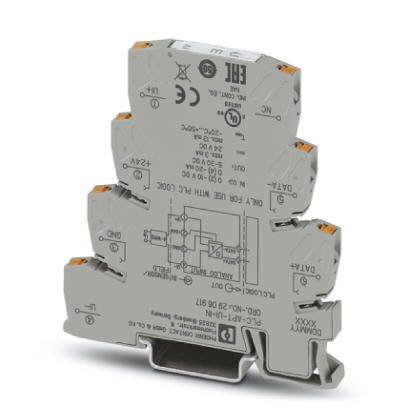

Phoenix Contact PLC-APT-UI-IN 2906917 I/O expansion module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- All mounting positions permitted
- Mounting instructions: Can be aligned without distance
- Wire stripping length: 8 mm
- Number of ports: 4
- Conductor cross-section rigid: 0.14 mm² ... 2.5 mm²
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²
- Conductor cross-section AWG: 26 ... 14
- Rated insulation voltage 50 V.
- Dimensioning surge voltage: 0.5 kV
- Pollution level: 2
- Over voltage category III
- Product type
I/O expansion module
- Type
PLC-APT-UI-IN
- No. of analogue inputs
1
- No. of inputs (max.)
1
- No. of inputs
1 x
- Height
80 mm
- Length
86 mm
- Width
6.2 mm
IP20
- Dim
(L x W x H) 86 x 6.2 x 80 mm
- Connection method
Push-in wire connector
- Connection
Push-in wire connector
- Manufacturer part #
2906917
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225670 Phoenix Contact PLC-APT-UI-IN 2906917 I/O expansion module
Datasheet 2225670 Phoenix Contact PLC-APT-UI-IN 2906917 I/O expansion module
User & Safety Instructions
User & Safety Instructions 2225670 Phoenix Contact PLC-APT-UI-IN 2906917 I/O expansion module
Description

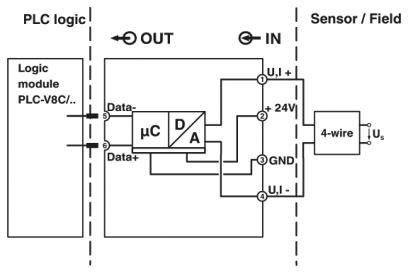

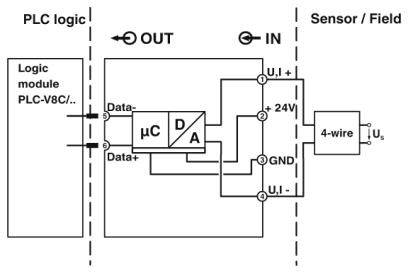

Analogue input module for PLC logic logic modules (generation 2 only), single-channel, signal type (4 ... 20 mA, 0 ... 20 mA, 0 ... 10 V, 2 ... 10 V) can be configured via DIP switch, push-in connection
