Phoenix Contact PLC-BPT- 24DC/ 1/ACT Relay socket (L x W x H) 94 x 6.2 x 80 mm 10 pc(s)
EAN:
Part number:
Item no:
Product type
Relay socket
Connection
Spring-loaded connector
Mounting type
DIN rail
Content
10 pc(s)
Operating voltage
24 V DC
Technical specifications
- Product type
Relay socket
- Content
10 pc(s)
- Connection
Spring-loaded connector
- Mounting type
DIN rail
- Operating voltage
24 V DC
- Contact type
1 maker
- Number of pins
5
- Compatible with
Phoenix Contact
- Width
6.2 mm
- Height
80 mm
- Length
94 mm
- Dim
(L x W x H) 94 x 6.2 x 80 mm
- Type
PLC-BPT- 24DC/ 1/ACT
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830432 Phoenix Contact PLC-BPT- 24DC/ 1/ACT Relay socket (L x W x H) 94 x 6.2 x 80 mm 10 pc(s)
Description

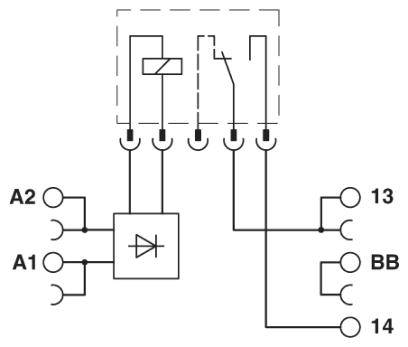

6.2 mm basic PLC terminal for output functions with push-in connector without relay or solid-state relay assembly, for mounting on NS 35/7.5, with load return conductor connection (BB), 1 NO, input voltage 24V DC
