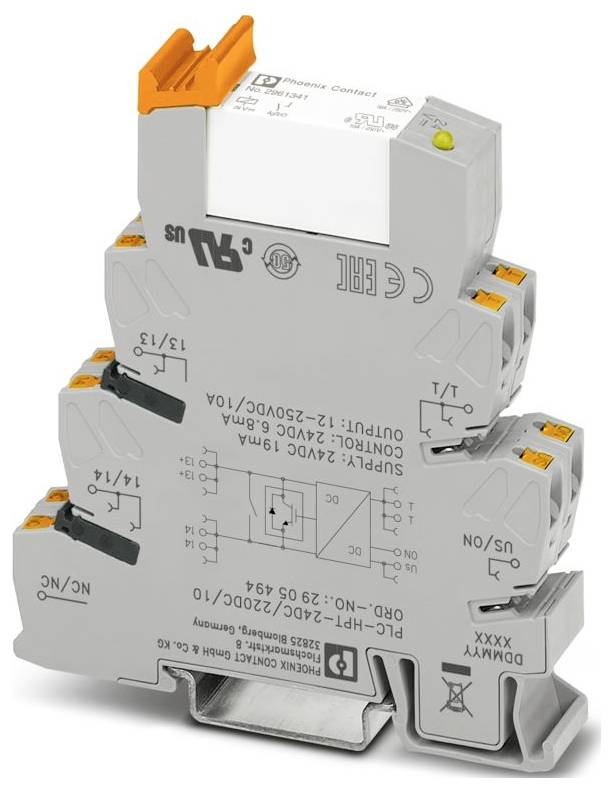

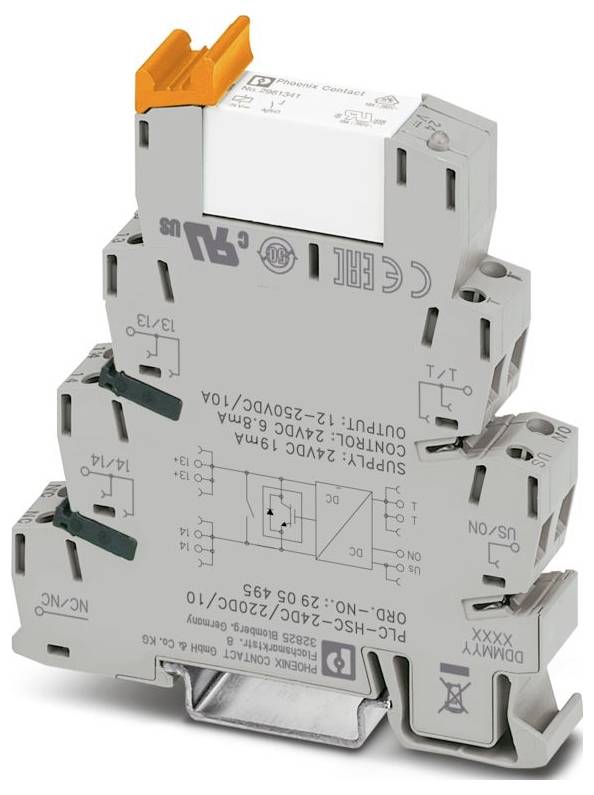

Phoenix Contact PLC-HPT-24DC/220DC/10 SSR 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Contact type
1 maker
Switching voltage (max.)
250 V DC
Type
PLC-HPT-24DC/220DC/10
Connection
Push-in spring-loaded terminal
Datasheet (PDF)
Technical specifications
- Product family: PLC INTERFACE
- Push-in connection
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²;0.2 mm² ... 2.5 mm² (single wire-end sleeve);2x 0.5 mm² ... 1 mm² (TWIN-end sleeve)
- Conductor cross-section rigid: 0.14 mm² ... 2.5 mm².
- Wire cross-section AWG: 26 ... 14
- Width: 14 mm
- Height: 80 mm
- Depth: 94 mm
- Colour: Grey (RAL 7042)
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: IEC 60947-5-1
- Mounting type: Rail mounting
- Over voltage category III
- Pollution level: 2
- Stripped length: 10 mm
- All mounting positions permitted
- Operating mode 100 % ED
- Switch-on time typical: 20 ms
- Mounting instructions: See derating curve
- Protection circuit: Inverse diode (No protection against permanent polarity reversal);Varistor
- LED status indicator (yellow)
- Output voltage range: 12 V DC ... 250 V DC
- Designation: DC hybrid output
- Application: Output function
- Switch-on current maximum 60 A (5 ms | Tamb = 60 °C)
- Insulation: Secure separation
- Data maintenance status: Data maintenance stand
- Date of last data maintenance: 15.09.2025
- Rated voltage (Plug-in solid state relay): 24 VDC
- Switch-off time typical: 40 ms
- Transmission frequency 1 Hz
- Contact version 1 closer
- Type of digital output: Electronic
- Continuous current limit: 10 A (see derating curve)
- Output: 2-conductor / NO contact in parallel operation (no galvanic shutdown)
- Load current minimum: 100 mA
- Rated insulation voltage 260 V AC
- Dimensioning surge voltage: 6 kV
- Overvoltage limit > 275 V.
- Insulation characteristics: Air and creepage distances between the circuits: Insulation properties: Air and creepage distances between the circuits
- Testing voltage: 4 kVeff (50 Hz, 1 min, Winding/contact)
- Air and creepage distances between the circuits: Air and creepage distances between the circuits
- RATED CONTROL CIRCUIT SUPPLY VOLTAGE US:24 V DC
- Voltage range referred to US: 0.8 ... 1.2
- Rated control feed current IS ≤ 19 mA
- RATED OPERATING VOLTAGE UC 24 V DC
- Voltage range relative to UC: 0.8 ... 1.2
- Rated operating current IC 6.8 mA
- Switching threshold "0" signal relative to UC: < 0.4
- Switching threshold "1" signal relative to UC: > 0.8
- Protection type (relay socket): IP20 (relay socket)
- Protection type (relays) RT II (relays)
- Protection class (installation location): IP54 (installation location)
- Product type
SSR
- Type
PLC-HPT-24DC/220DC/10
- Connection
Push-in spring-loaded terminal
- Response time
20 ms
- Fall time
40 ms
- Contact type
1 maker
- Switching voltage (max.)
250 V DC
- Features
+ LED
+ varistor
- Max. temperature
60 °C
- Min. temperature
-25 °C
- Depth
94 mm
- Width
14 mm
- Height
80 mm
- Dim
(W x H x D) 14 x 80 x 94 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579794 Phoenix Contact PLC-HPT-24DC/220DC/10 SSR 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579794 Phoenix Contact PLC-HPT-24DC/220DC/10 SSR 1 maker 1 pc(s)
Description
PLC-INTERFACE, hybrid solid-state relay including bypass relay with push-in connection, for mounting on rail NS 35/7.5, input: 24 V DC, output: 12 V DC - 250 V DC / 10 A
