Technical specifications

Description of the input: En 61131-2 Type 3
Number of inputs: 8 (2 configurable as analogueue)
Protective circuit: Reverse polarity protection
Colour: grey
Status indicator: Green LED
Input voltage range: 0 V ... 10 V
Input resistance> 3.5 kΩ
Typical current consumption 4 mA
Number of outputs: ≤ 8
Real-time clock Accuracy: ±2 s/d.
Real-time clock Buffer time: 96 h (capacitor)
All mounting positions permitted
Mounting instructions: Can be plugged into 8 x PLC INTERFACE terminals
Wire stripping length: 9 mm
Number of ports: 1
Conductor cross-section rigid: 0.14 mm² ... 1.5 mm².
Conductor cross-section flexible: 0.14 mm² ... 1.5 mm².
Conductor cross-section AWG: 26 ... 16
Rated insulation voltage 50 V.
Dimensioning surge voltage: 0.8 kV
Pollution level: 2
Over voltage category III

Type: PLC-V8C/PT-24DC/SAM2

No. of analogue inputs: 2

No. of digital inputs (max.): 6

No. of inputs (max.): 8

No. of outputs (max.): 8

Connectable in-line terminals: 8

No. of inputs: 8 x

No. of outputs: 8 x

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 26.4 V DC

Max. operating voltage: 26.4 V DC

Operating voltage: 24 V DC

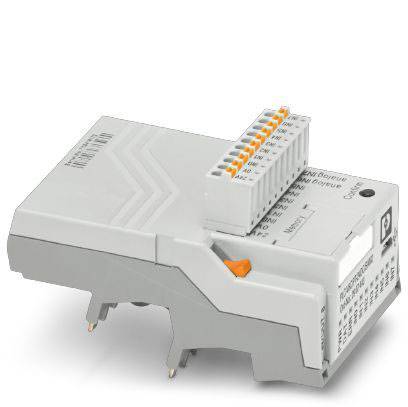

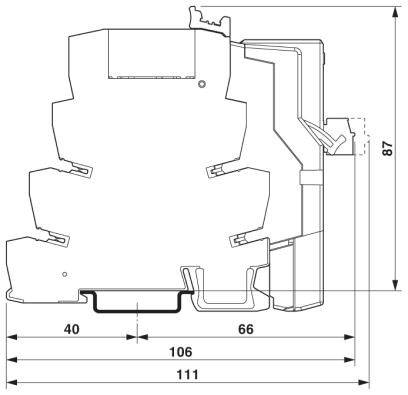

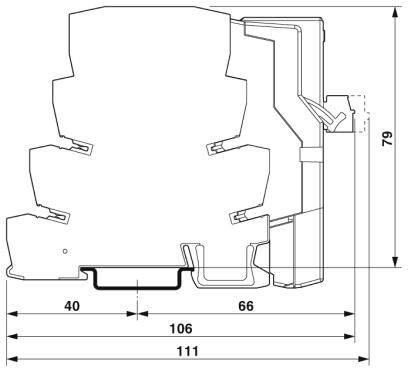

Height: 111 mm

Length: 87 mm

Width: 50 mm

: IP20

Dim: (L x W x H) 87 x 50 x 111 mm

Connection method: Push-in wire connector

Connection: Push-in wire connector

Max. current consumption: 4 mA

Manufacturer part #: 2907443

Max. ambient temperature: +50 °C

Min. ambient temperature: -20 °C

Logic voltage UL: 24 V DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2137129 Phoenix Contact PLC-V8C/PT-24DC/SAM2 2907443 24 V DC

User & Safety Instructions

User & Safety Instructions 2137129 Phoenix Contact PLC-V8C/PT-24DC/SAM2 2907443 24 V DC

Description

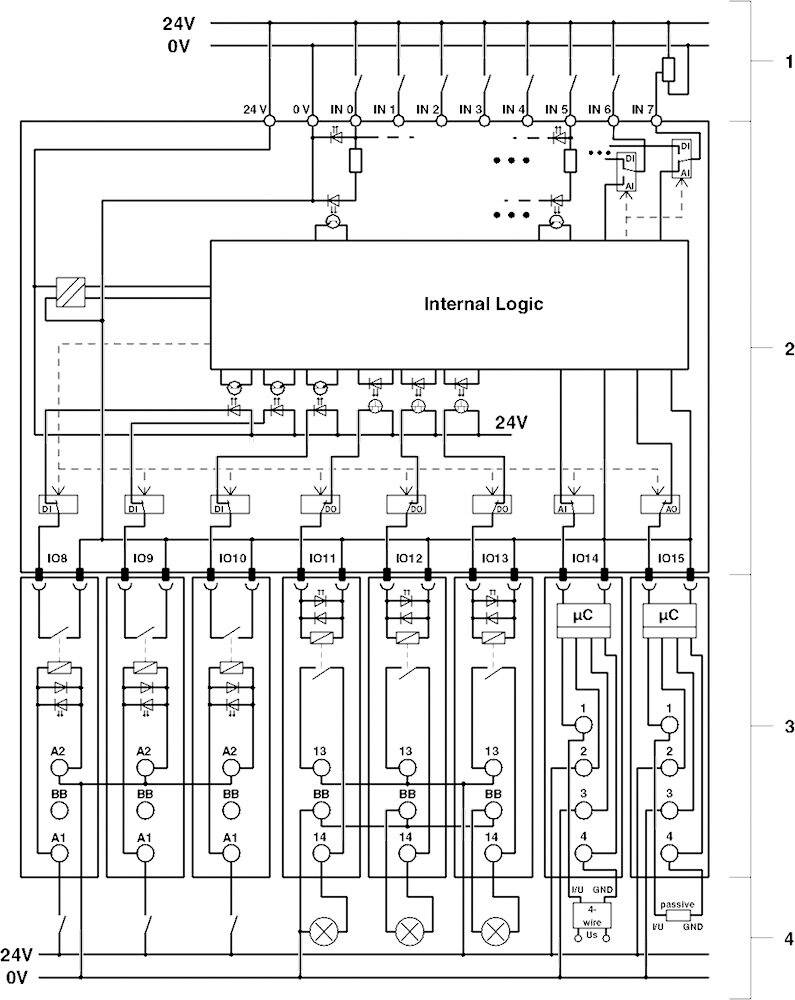

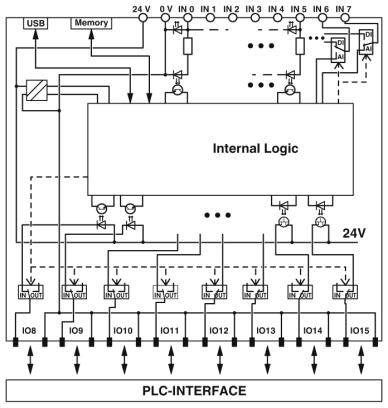

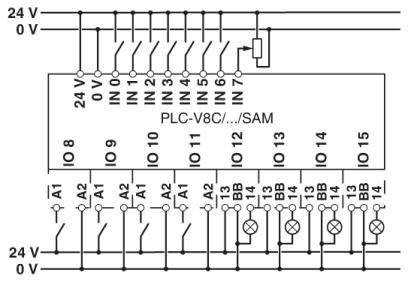

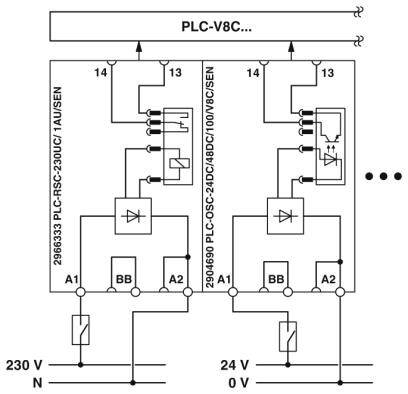

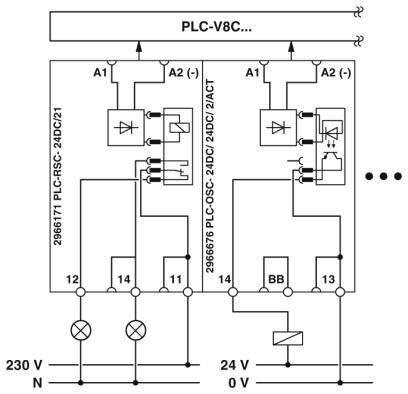

PLC logic stand-alone logic module, generation 2, with 16 I/OS, can be plugged into 8 digital or analogue PLC INTERFACE terminals, not expandable, real-time clock, micro-USB socket, recording for memory module and Bluetooth adapter, push-in connection
