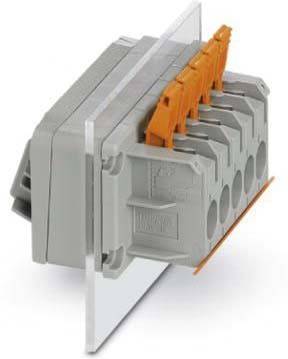

Phoenix Contact 1821070 Feedthrough terminal 10 mm Push-lock spring terminal Grey 15 pc(s)
EAN:
Part number:
Item no:
Product type
Feedthrough terminal
Connection
Push-lock spring terminal
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
41 A
Content
15 pc(s)
Number (Package size 15 pc(s))
Total (€ 13.72 / piece)
€ 205.87
plus VAT.
Highlights & Details
Execution clamp 1821070
- PLW 16-6/ 4-10
Technical specifications
- Product type
Feedthrough terminal
- Connection
Push-lock spring terminal
- Cross section (inflexible) (min.)
2.50 mm²
- Cross section (inflexible) (max.)
16 mm²
- Clamp width
10 mm
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
1821070
- Content
15 pc(s)
- Type
PLW 16-6/ 4-10
- Flammability rating
V0
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1829100 Phoenix Contact 1821070 Feedthrough terminal 10 mm Push-lock spring terminal Grey 15 pc(s)
Description
Execution clamp PLW 16-6/4-10 41 A 2.5Qmm-16mm2 gray
